Hands-On Shiny: Routine Malaria Data Dashboard Workshop

Author

AMMnet Senegal Workshop PATH Team

Published

June 27, 2025

Setup

Welcome to the “Developing Data Visualisation Dashboards in R” workshop! In this session, we’ll build a Shiny app step by step, exploring what Shiny can do - from basic reactive plots to interactive tables, maps, and advanced UI elements. Each section includes explanatory text, demo code, and exercises for you to try.

Why RShiny?

Shiny lets you turn R code into interactive web applications without needing to learn HTML/CSS/JS.

In malaria programs, routine data (e.g., DHIS2 exports) are key to monitoring. A Shiny dashboard can help stakeholders explore data visually, spot trends, and inform decisions and perform routine analysis.

We’ll continue using our DHIS2 dataset that we just downloaded and cleaned.

Important

Before you begin:

Ensure you have your R Studio Project open.
Ensure you have your DHIS2 cleaned data saved into the correct folder: data-outputs/data_dhis2_laos_ammnet_cleaned.csv
If you didn’t finish the steps in the earlier session - we have the dataset avaliable for download on the home page.
There is alot of material covered here so do not worry if you don’t get through it all today. The materials will remain online after the workshop so you can continue to work through it at your own pace.
If you have any questions or need help, please ask a facilitator or raise your hand.

Install Packages

We need some addiditional packages for this session - install these packages if you don’t have them already using the code below in the console:

install.packages("shiny")
install.packages("bslib")
install.packages("tidyverse")
install.packages("DT")
install.packages("plotly")
install.packages("leaflet")
install.packages("sf")
install.packages("lubridate")
install.packages("bsicons")
install.packages("scales")

These packages will allow us to do the following:

shiny: core package to build apps.
bslib: theming (Bootstrap customization) and modern dashboard design elements.
tidyverse: data wrangling (dplyr, ggplot2, readr…).
DT: interactive tables.
plotly: interactive plots.
leaflet & sf: mapping spatial data.
lubridate: for dealting with date-time.
bsicons: for using Bootstrap icons in Shiny.
scales for formatting numeric values

Objectives

Imagine you are a data analyst for the Minstry of Health and you’ve been tasked with creating a way for Provinces in the country to quickly and easily visualise and compare their malaria trends without the need for individual excel files or analyses. That’s the kind of problem we’re framing our dashboard around today. During this session you will:

Understand key elements of Shiny Dashbaords
Gain hands on experience customising Shiny dashbaords

We can’t cover all aspects of creating Shiny Dashboards but there are a tonne of great resources online we will share during the course of today!

We’ll start by highlighting some key building blocks of dashbboards before moving into customisations and visualisation rendering.

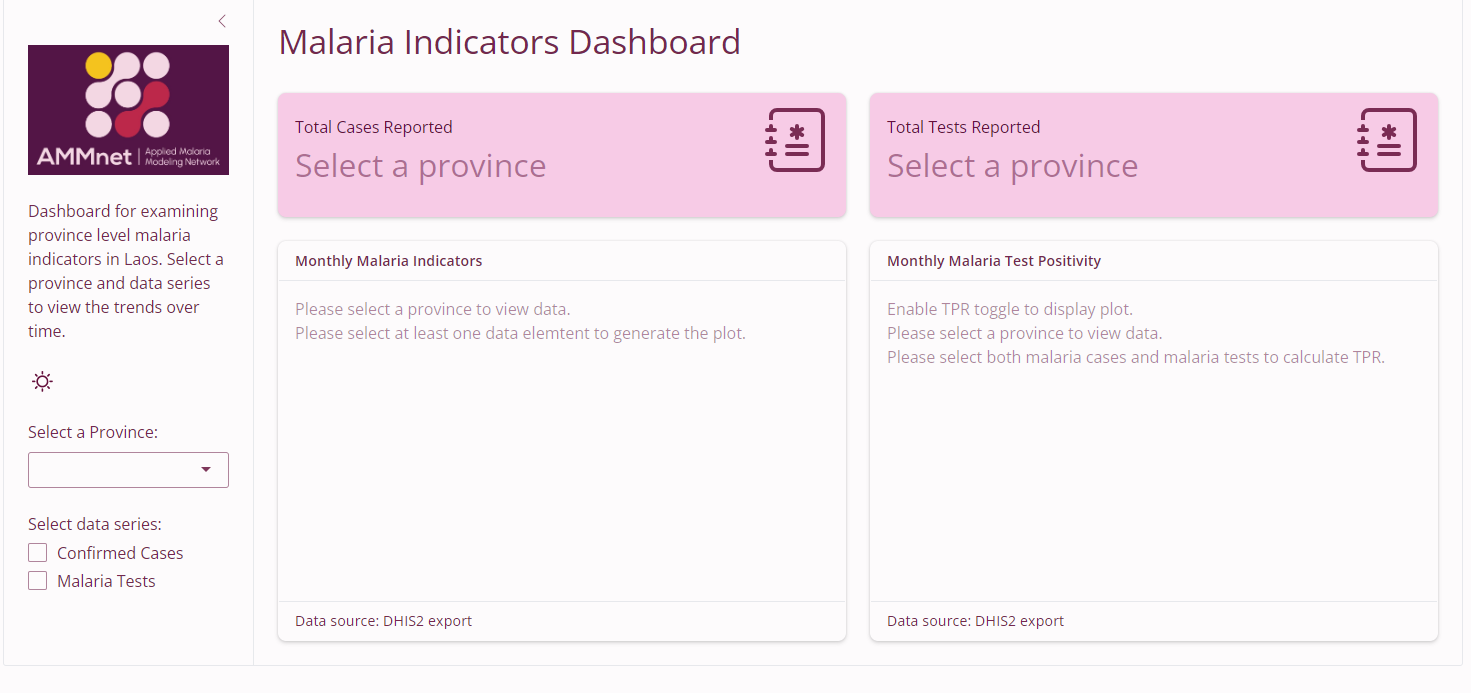

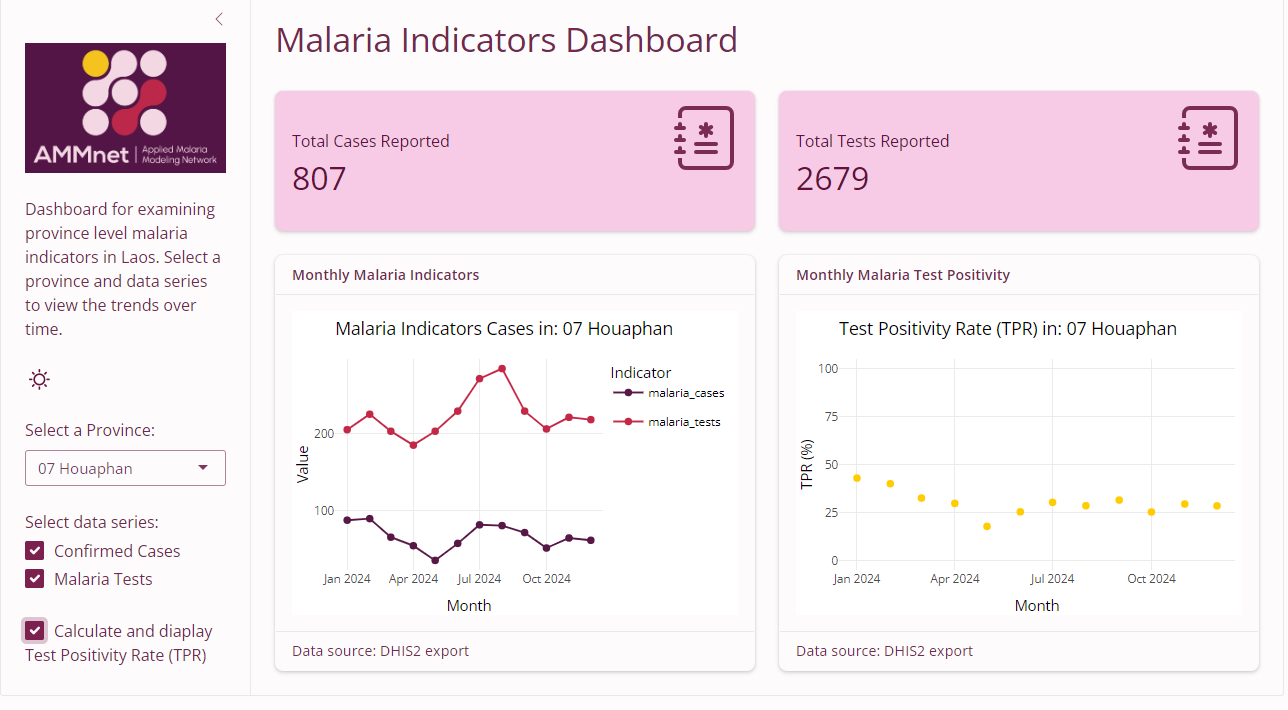

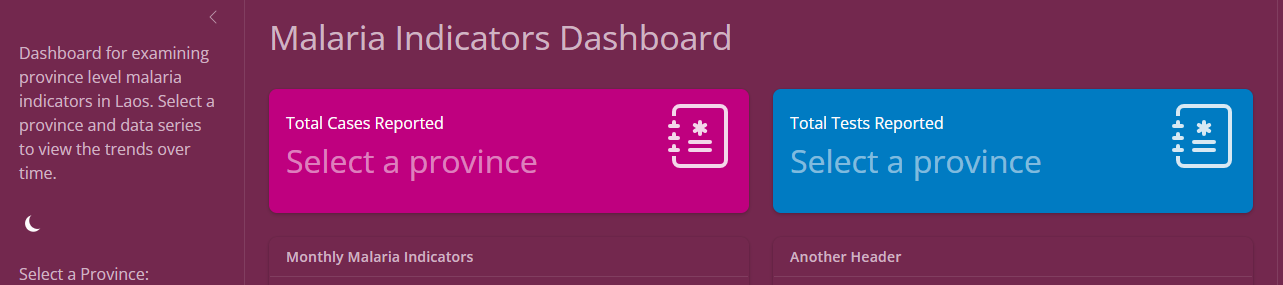

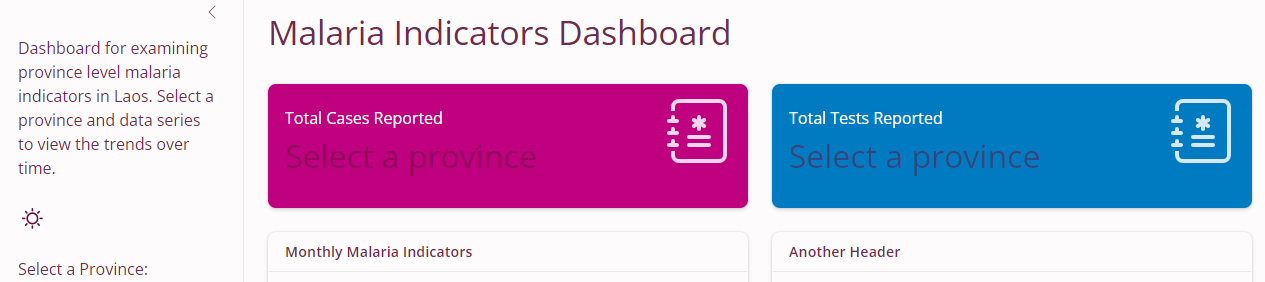

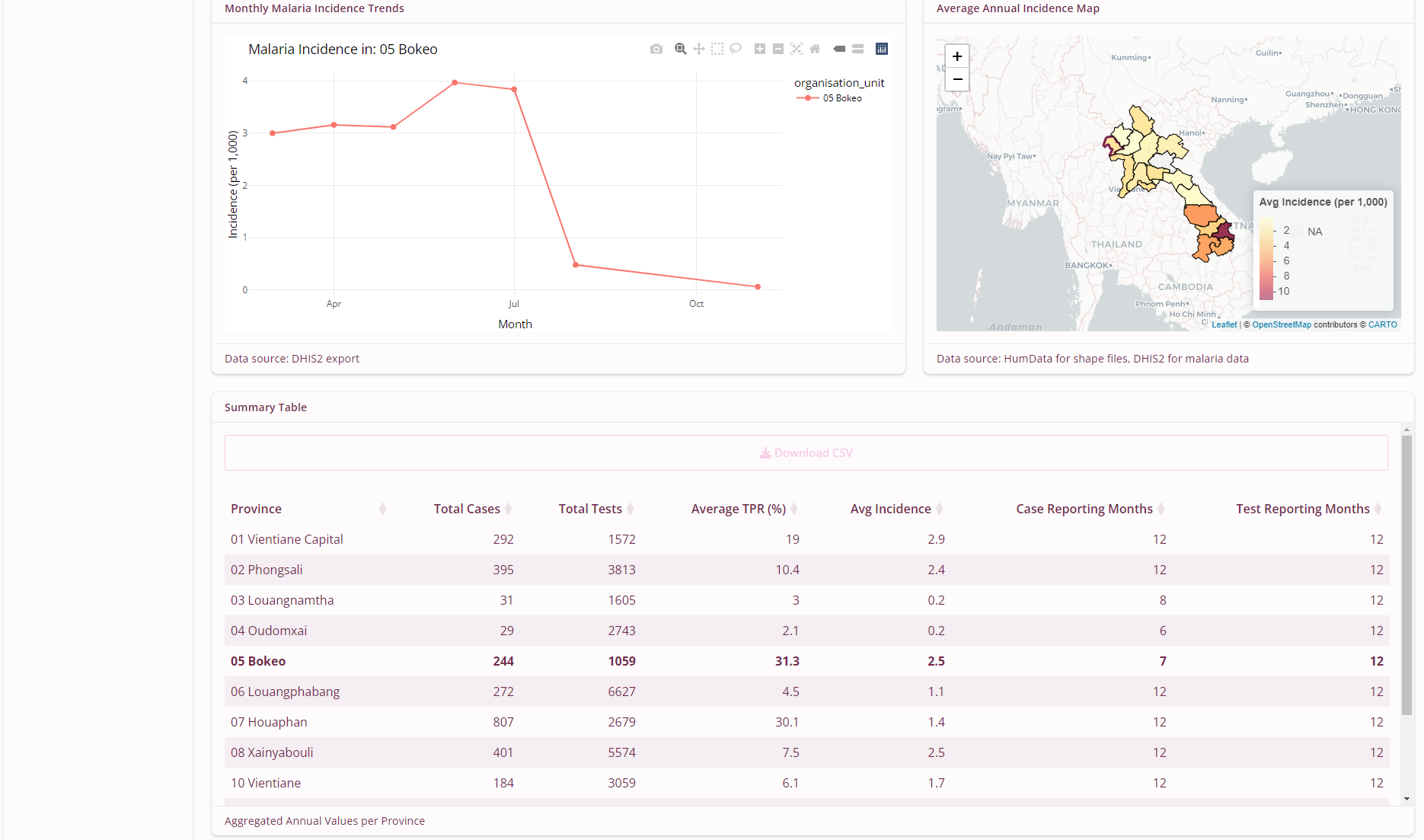

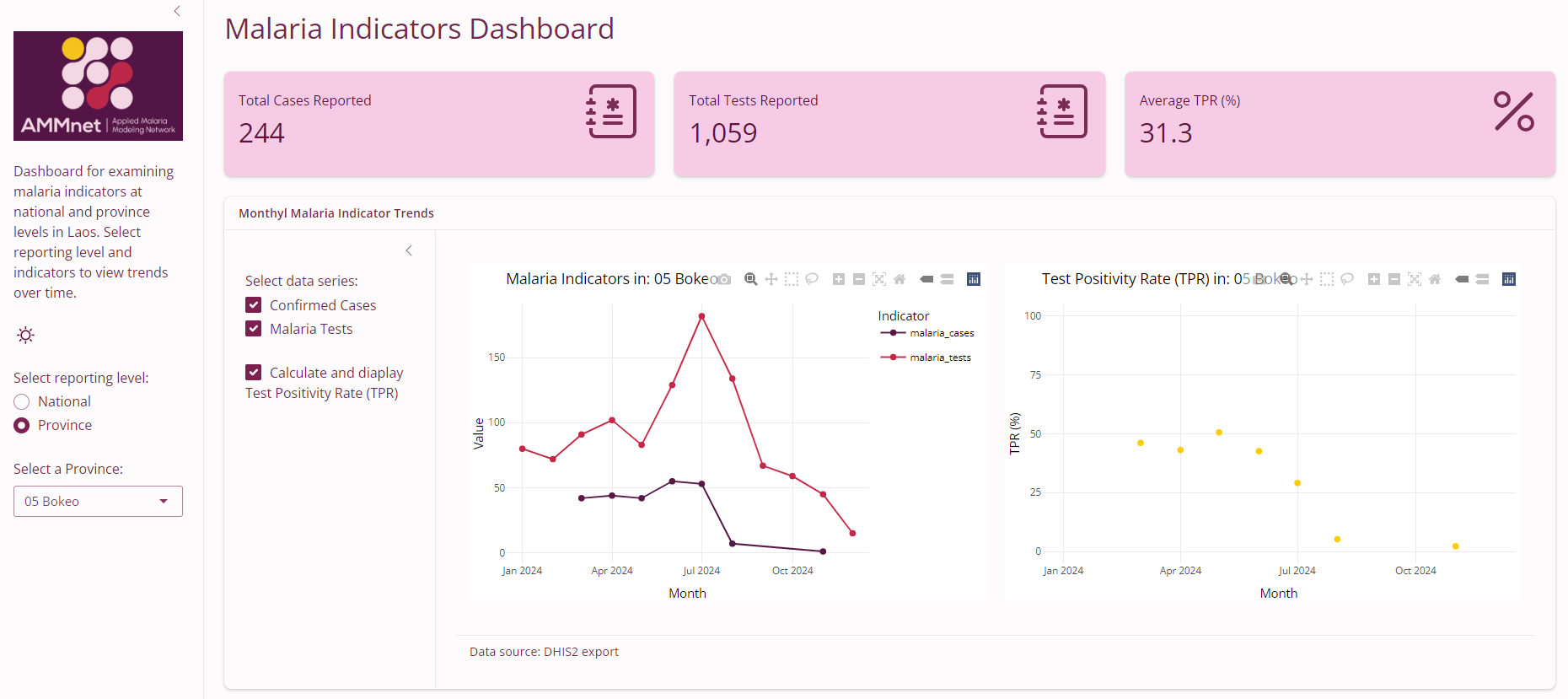

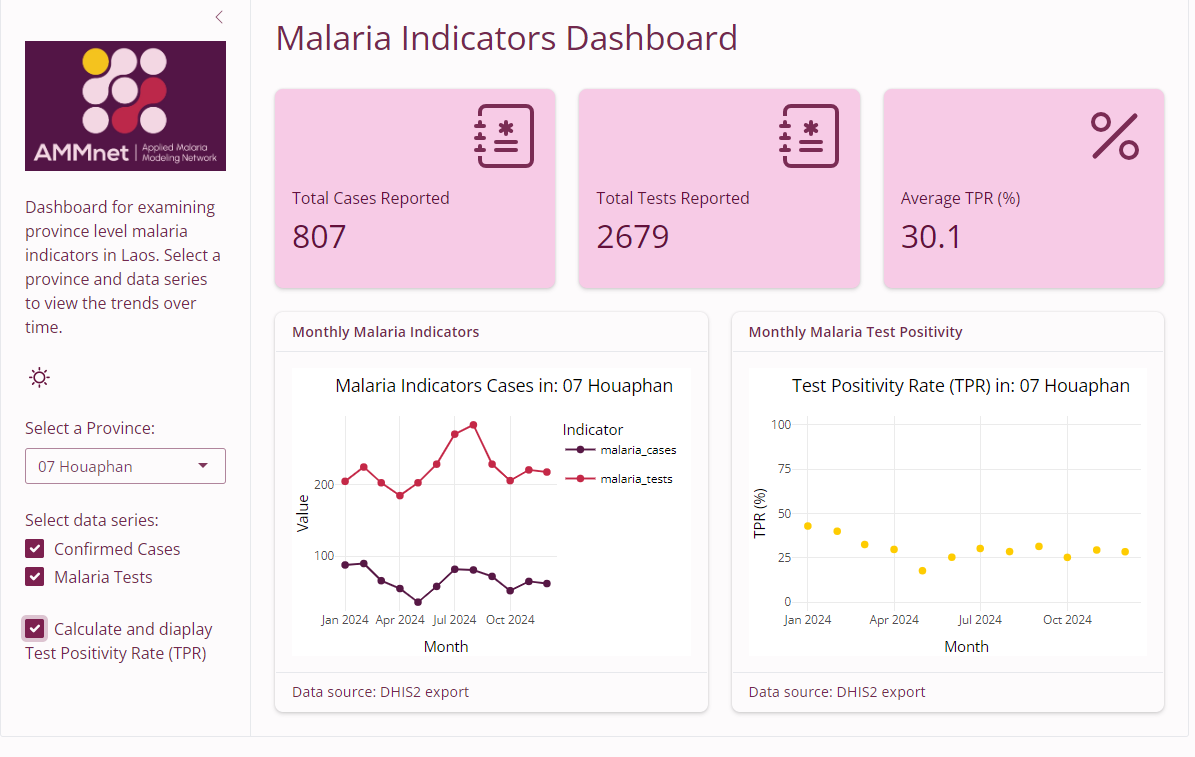

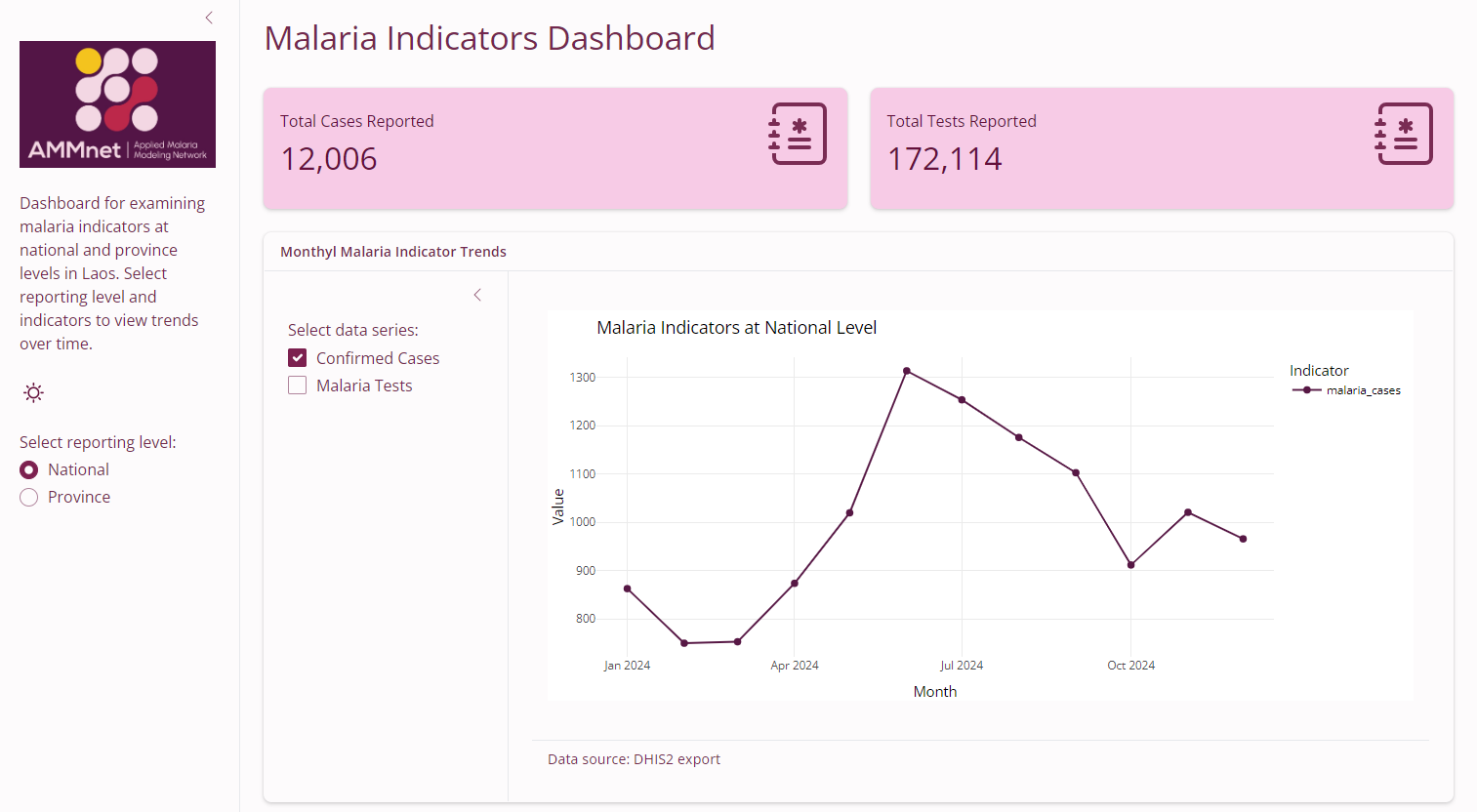

In the end we hope you will have created something like the dashboard as shown below:

Tip

Tips for this tutorial

After each step of the tutorial ensure you press Run App or Refresh App to visualise your changes
Sometimes cleaning the environment or restartng R can be helpful when if your app isn’t updating with changes.
To check the definition, usage and arguements of functions type ? followed by the funcition name in the Console e.g. ?value_box.
When designing a Shiny App - always think about the end user and their journey through the application.

Set up App Skeleton

Now we have Shiny installed we can create our first App. Open up a new R script and save it as app.R in your main project folder.

Copy the code below which is a demo app the is built into the Shiny package.

#
# This is a Shiny web application. You can run the application by clicking
# the 'Run App' button above.
#
# Find out more about building applications with Shiny here:
#
#    https://shiny.posit.co/
#

library(shiny)

# Define UI for application that draws a histogram
ui <- fluidPage(

    # Application title
    titlePanel("Old Faithful Geyser Data"),

    # Sidebar with a slider input for number of bins
    sidebarLayout(
        sidebarPanel(
            sliderInput("bins",
                        "Number of bins:",
                        min = 1,
                        max = 50,
                        value = 30)
        ),

        # Show a plot of the generated distribution
        mainPanel(
           plotOutput("distPlot")
        )
    )
)

# Define server logic required to draw a histogram
server <- function(input, output) {

    output$distPlot <- renderPlot({
        # generate bins based on input$bins from ui.R
        x    <- faithful[, 2]
        bins <- seq(min(x), max(x), length.out = input$bins + 1)

        # draw the histogram with the specified number of bins
        hist(x, breaks = bins, col = 'darkgray', border = 'white',
             xlab = 'Waiting time to next eruption (in mins)',
             main = 'Histogram of waiting times')
    })
}

# Run the application
shinyApp(ui = ui, server = server)

This is a simple pre-built demo that generates an app with a slider sliderInput to determine the number of bins on the corresponding histogram plot. You can see with just a few lines of code how easy it is to generate an interactive application!

When you run this with Run App in RStudio, Shiny launches a local web app .
Reactivity: When an input changes, reactive code re-executes and updates outputs automatically.

Lets close this app and go ahead and build own now!

Anatomy of a Shiny App

Before jumping into code, a quick reminder of the basic app structure.

A Shiny app has two key components:

UI (User Interface): defines what users see and interact with: inputs (dropdowns, sliders) and outputs (plots, tables, text). It controls the layout and appearance of your app.
Server: R code that reacts to user inputs, does computations, and sends rendered outputs to the UI. It contains the instructions that your computer needs to build your app
Finally the shinyApp function creates Shiny app objects from an explicit UI/server pair.

Lets remove the contents of the UI and Server code from the default application to give something like this:

#
# This is a Shiny web application. You can run the application by clicking
# the 'Run App' button above.
#
# Find out more about building applications with Shiny here:
#
#    https://shiny.posit.co/
#

library(shiny)

#-Define UI for application - User Interface------------------------------------
ui <- fluidPage(

)

#-Define server logic - Computations--------------------------------------------
server <- function(input, output) {

  # reactive expressions, computations and render functions
}

#-Run the application-----------------------------------------------------------
shinyApp(ui = ui, server = server)

Now add in our addiditional library calls that we had installed and will need for this application at the top of the script - Ensure this is written outside of the ui and server functions. This will ensure that these packages are loaded when the app starts up.

#-packages needed---------------------------------------------------------------
library(shiny)
library(bslib)
library(tidyverse)
library(DT)
library(plotly)
library(leaflet)
library(sf)
library(lubridate)
library(bsicons)
library(scales)

Read In Our Data

Next we need to ensure we read in the correct data to be able to start creating and generating outputs.

Add the following code after the library calls and before the UI code:

#-read in app data once on app start up-----------------------------------------
app_data <-
  read.csv("./data-outputs/data_dhis2_laos_ammnet_cleaned.csv")

     organisation_unit     period               var_name  value
1 01 Vientiane Capital 2024-01-01          malaria_tests 102.00
2 01 Vientiane Capital 2024-01-01 malaria_cases_per_1000   1.26
3 01 Vientiane Capital 2024-01-01          malaria_cases  11.00
4 01 Vientiane Capital 2024-02-01          malaria_tests 109.00
5 01 Vientiane Capital 2024-02-01 malaria_cases_per_1000   1.58
6 01 Vientiane Capital 2024-02-01          malaria_cases  12.00

You might notice that the period colum has been read in as a character variable so we need to ensure that this is in date format.

Add the following line of code after you read in the dataset.

# re-classify period as a date
app_data$period <- lubridate::as_date(app_data$period)

Now we have our data ready to use in the app, we can start building out the UI and Server components.

Part 1: Shiny Building Blocks

Setting up an Empty Layout

For this tutorial we will focus on building our Shiny app using bslib, a modern UI toolkit that gives your app a clean and responsive layout with minimal effort.

We’ll begin by setting up a basic dashboard skeleton - no data or inputs yet - just the layout structure using bslib::page_sidebar().

This gives us a two-pane layout:

A sidebar (on the left) for inputs or filters
A main content area (on the right) for plots, tables, or summaries

Paste the following code into your app.R file:

#-Load libraries----------------------------------------------------------------
library(shiny)
library(bslib)
library(tidyverse)
library(DT)
library(plotly)
library(leaflet)
library(sf)
library(lubridate)

#-read in app data once on app start up-----------------------------------------
app_data <-
  read.csv("./data-outputs/data_dhis2_laos_ammnet_cleaned.csv")

# re-classify period as a date
app_data$period <- lubridate::as_date(app_data$period)

#-Define UI for application - User Interface------------------------------------
ui <- page_sidebar(
  title = "My Dashboard",  # Title shown in the top bar

  sidebar = "Sidebar",     # Placeholder sidebar content

  "Main content area"     # Placeholder for main content (e.g., plots or tables)

)

#-Define server logic - Computations--------------------------------------------
server <- function(input, output) {
  # Placeholder for reactive expressions and outputs
}

#-Run the application-----------------------------------------------------------
shinyApp(ui = ui, server = server)

What This Does

Component	Description
`page_sidebar()`	Creates a full-page layout with a sidebar + main area
`title = "..."`	Sets the page title shown in the app’s header bar
`sidebar = "..."`	Placeholder content for the sidebar (we’ll replace this with inputs soon)
`"Main content area"`	Text shown in the main panel (this will later become plots and tables)

Click Run App in RStudio. You’ll see:

A header bar with the title
A left-hand sidebar with the word Sidebar
A main panel with the text Main content area

🎉 That’s your first bslib layout up and running!

You can add additional elements to the main panel of the page by supplying them to page_sidebar.

By default, the sidebar panel will appear on the left side of your app. You can move it to the right side by giving sidebar the optional argument position = "right".

💻 Try this now

If you want to, page_sidebar creates a sidebar layout that fills the page, and is a quick way to create a page with a sidebar. If you’d like to create a floating sidebar layout that can appear anywhere on the page, use page_fluid and layout_sidebar.

# Floating sidebar layout
ui <- page_fluid(

  layout_sidebar(
    sidebar = sidebar("Sidebar"), # sidebar elements

   "Main contents" # Main pannel elements
  )
)

You’ll notice here that the side bar and main contents panes are much smaller now, this is because page_fluid() allows the contents to scale to the required window size to fit the content.

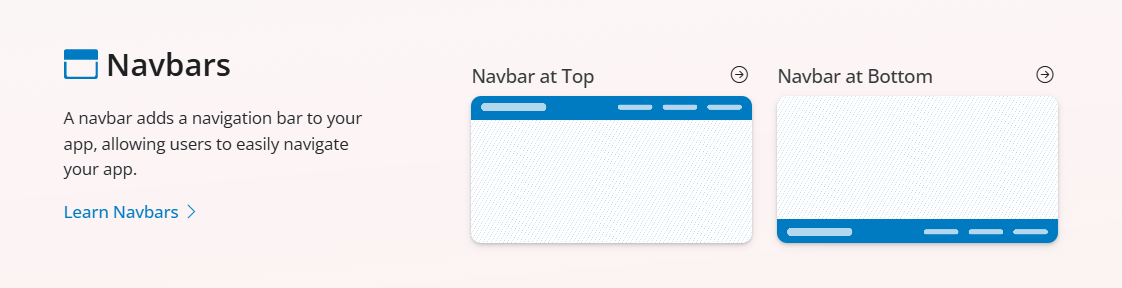

Shiny also allows for more complex layouts too including options for example, page_navbar creates a multi-page user interface that includes a navigation bar. This layout is great for multistage analysis or reporting.

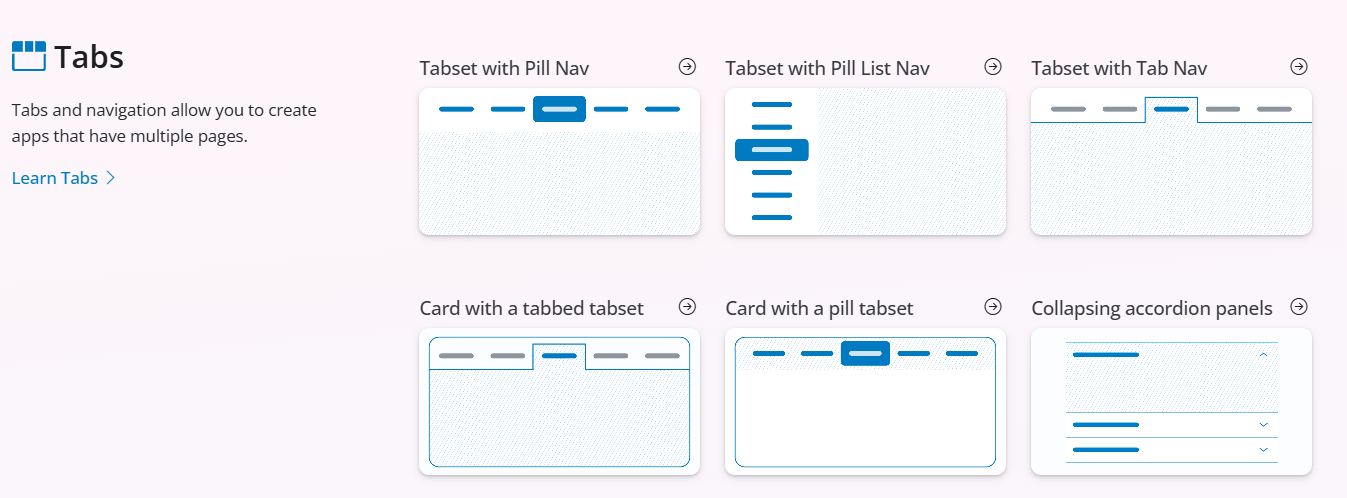

Another option for creating multipage dashbaords is through the Tabs

We will stick to using a single page app today but everything we learn can be applied to controlling multipage apps in the future!

Layout Elements

`Cards()`

Now we have out sidebar and main panel, we can also add containers to the main panel that will house out our data visualisations, cards() are a common organising unit in modern dashboards.

You can use the function card() to create a card in your Shiny app. card() creates a regular container with borders and padding.

ui <- page_fluid(
  layout_sidebar(
    sidebar = sidebar("Sidebar"),
    "Main contents",
    # including a card container in the main panel
    card(
      height=400 # setting the height of the card to ensure we can see it when empty.
    )
  )
)

Use cards to present grouped and related information. Add content to a card by supplying arguments to card().

Card item functions create various different parts to the card:

card_header() - A header (with border and background color) for the card(). Typically appears before a card_body().
card_footer() - A header (with border and background color) for the card(). Typically appears after a card_body().
card_boady() - A general container for the “main content”

Exercise 1

Use the above elements to add a card_header(), card_footer() and card_body() to our current application - Hint: try adding some plain text in ” ” to each of the elements.

Show Solution

# inclduing card elements
ui <- page_fluid(
  layout_sidebar(
    sidebar = sidebar("Sidebar"),
    "Main contents",
    card(
      height=400, #height set to 400 pixels
      full_screen = TRUE,  #allow card to expand if full screnn button is clicked
      card_header("A Header"), # add a header
      card_body("Card Body"),  # add main body
      card_footer("A Footer")  # add footer
    )
  )
)

We’ll be using cards() alot in this tutorial to house the elements of our dashboard. See the bslib Cards article to learn more about cards.

`value_boxes()`

Value boxes are another useful UI component. Use value boxes to highlight important values in your app.

Create a value box with the function value_box().

A value_box() has 4 main parts:

value: Some text value.
title: Optional text to display above value.
showcase: Optional UI element(s) to display alongside the value.
theme: Optional theme to change the appearance of the value box.
...: Any other text/UI elements to appear below value.

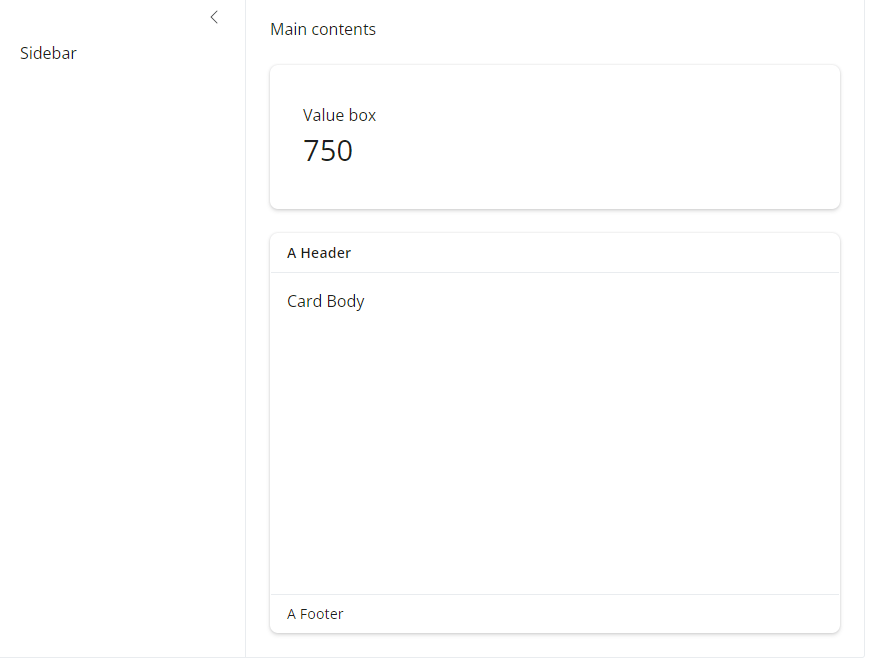

ui <- page_fluid(

  #-layout------------------------
  layout_sidebar(

    #-sidebar---------
    sidebar = sidebar("Sidebar"),

    #-main pannel content----
    "Main contents",

    # Value Box
    value_box(
      title = "Value box", # Title
      value = 750          # Value to show
    ),

    # Card
    card(
      height=400,
      full_screen = TRUE,
      card_header("A Header"),
      card_body("Card Body"),
      card_footer("A Footer")
    )
  )
)

To make our value boxes stand-out even more we can enhance their appearance through setting their theme colour and including inforgraphic icons.

value_box(
      title = "Value box", # Title
      value = 750,         # Value to show
      showcase = bsicons::bs_icon("laptop"), #include an icon
      theme = "pink" # change the box theme colour
    )

Note

Note: to use Bootstrap icons, use the function bsicons::bs_icon()

Check out the library of avaliable icons here

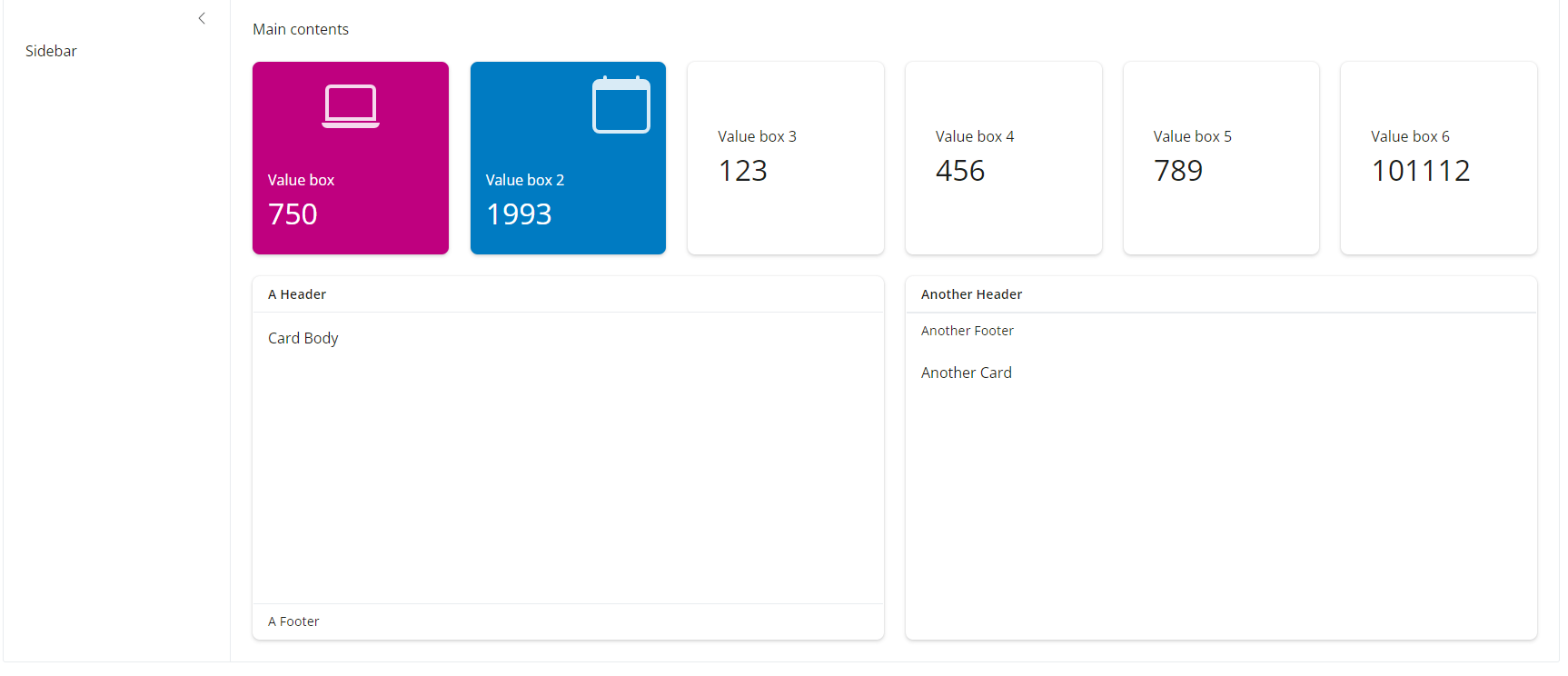

We can change the location of value_boxes() using the showcase_layout() arguement - options include "left center", "top-right". or "bottom"

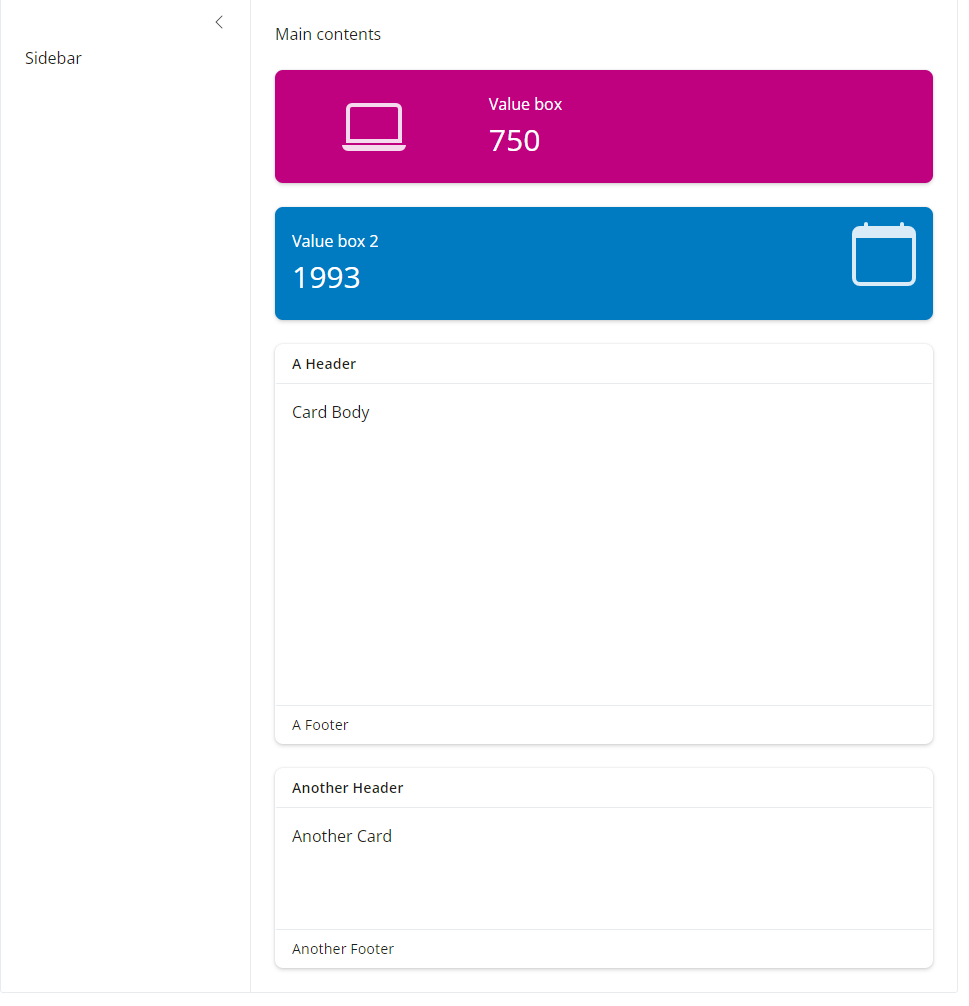

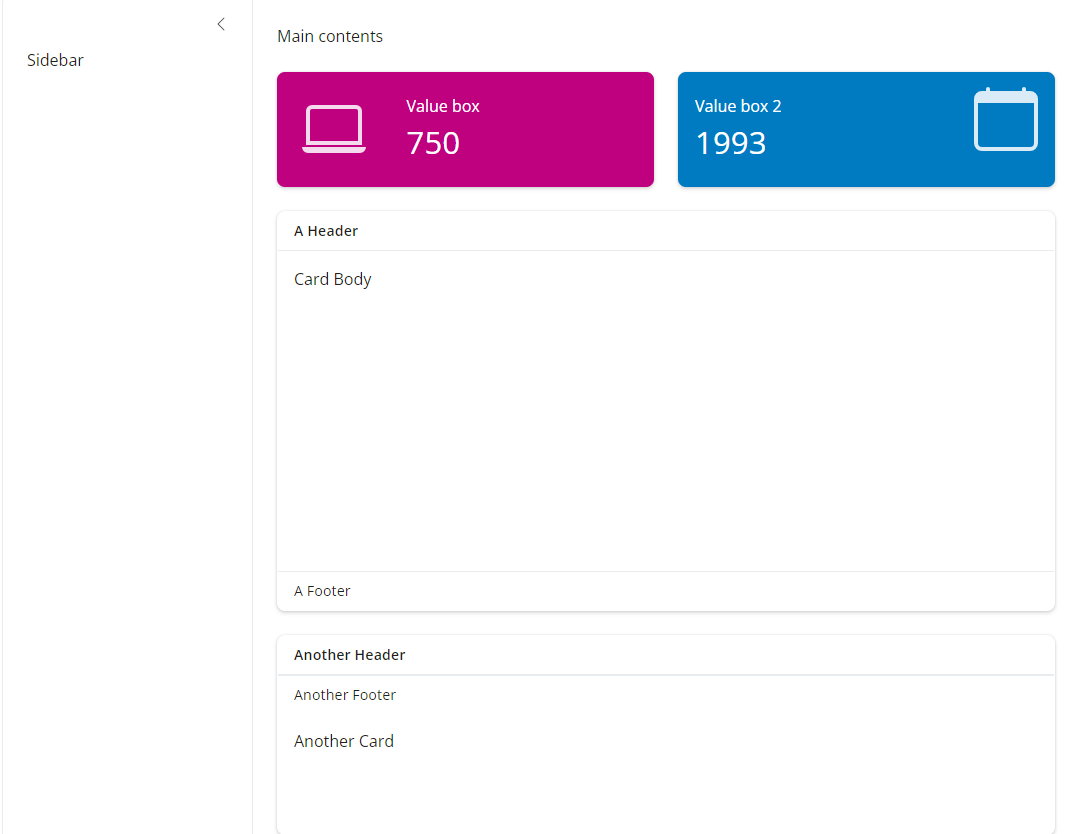

Exercise 2

Add an addiditional value_box() and card() to your current dashboard. Set the card() to a different height and choose a new icon, theme and icon placement for the addiditional value_box()
- Hint: Bootstrap’s theme colors are drawn from a second color list that includes variations on several main colors, named literally. These colors include "blue", "purple", "pink", "red", "orange", "yellow", "green", "teal", and "cyan".

Show Solution

ui <- page_fluid(

  #-layout------------------------
  layout_sidebar(

    #-sidebar---------
    sidebar = sidebar("Sidebar"),

    #-main pannel content----
    "Main contents",

    # Value Box
    value_box(
      title = "Value box", # Title
      value = 750,         # Value to show
      showcase = bsicons::bs_icon("laptop"), #include an icon
      theme = "pink" # change the box theme colour
    ),

    # second value box
    value_box(
      title = "Value box 2",
      value = 1993,
      showcase = bsicons::bs_icon("calendar"),
      showcase_layout = "top right",
      theme = "blue"
    ),

    # Card
    card(
      height=400,
      full_screen = TRUE,
      card_header("A Header"),
      card_body("Card Body"),
      card_footer("A Footer")
    ),

    # Second card box
    card(
      height = 200,
      full_screen = TRUE,
      card_header("Another Header"),
      card_body("Another Card"),
      card_footer("Another Footer")
    )
  )
)

Adjusting Layout Positions

By default, when you add multiple elements to your main panel, Shiny will place them one after another vertically (i.e., one long column). But as we build real dashboards, we often want to organize elements horizontally or into grids to create a cleaner and more informative user interface.

This is where layout functions like layout_columns() and layout_column_wrap() come in.

`layout_columns()`

The function layout_columns() allows you to place elements next to each other, specifying how many columns wide each element should be. Shiny divides the available space into 12 columns . You can assign any number of columns to each element, as long as they add up to 12 or less.

Let’s try adding moving our two value boxes side by side:

ui <- page_fluid(

  #-layout------------------------
  layout_sidebar(

    #-sidebar---------
    sidebar = sidebar("Sidebar"),

    #-main pannel content----
    "Main contents",

    # Value Boxes in a single row
    layout_columns(
    value_box(
      title = "Value box", # Title
      value = 750,         # Value to show
      showcase = bsicons::bs_icon("laptop"), #include an icon
      theme = "pink" # change the box theme colour
      ),

    value_box(
      title = "Value box 2",
      value = 1993,
      showcase = bsicons::bs_icon("calendar"),
      showcase_layout = "top right",
      theme = "blue"
      )
    ),

    # Card
    card(
      height=400,
      full_screen = TRUE,
      card_header("A Header"),
      card_body("Card Body"),
      card_footer("A Footer")
    ),

    # Second card box
    card(
      height = 200,
      full_screen = TRUE,
      card_header("Another Header"),
      card_body("Another Card"),
      card_footer("Another Footer")
    )
  )
)

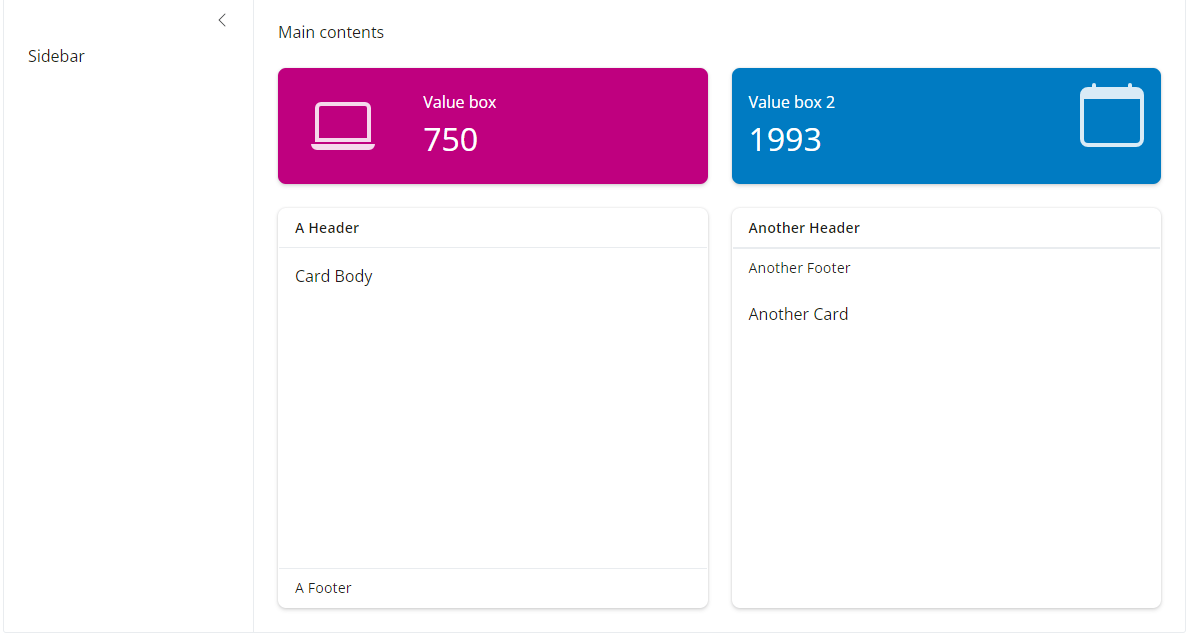

layout_columns() automatically places the two value boxes next to each other. By default, each element inside layout_columns() takes up equal space. If you want more control, you can specify col_widths for each element /12 e.g. col_widths``= c(6, 6).

Exercise 3

Use layout_columns() to set the card() elements into two columns. What do you notice about the height of the cards?

Show Solution

ui <- page_fluid(

  #-layout------------------------
  layout_sidebar(

    #-sidebar---------
    sidebar = sidebar("Sidebar"),

    #-main pannel content----
    "Main contents",

    # Value Boxes in a single row
    layout_columns(
      value_box(
        title = "Value box", # Title
        value = 750,         # Value to show
        showcase = bsicons::bs_icon("laptop"), #include an icon
        theme = "pink" # change the box theme colour
        ),

      value_box(
        title = "Value box 2",
        value = 1993,
        showcase = bsicons::bs_icon("calendar"),
        showcase_layout = "top right",
        theme = "blue"
        )
      ),

    # Cards in a single row
    layout_columns(
      card(
        height=400,
        full_screen = TRUE,
        card_header("A Header"),
        card_body("Card Body"),
        card_footer("A Footer")
        ),

      card(
        height = 200,
        full_screen = TRUE,
        card_header("Another Header"),
        card_body("Another Card"),
        card_footer("Another Footer")
        )
      ),
    )
  )

The two cards are now the same height as the tallest card. This is because layout_columns() automatically sets the height of each column to match the tallest element in that row.

`layout_column_wrap()`

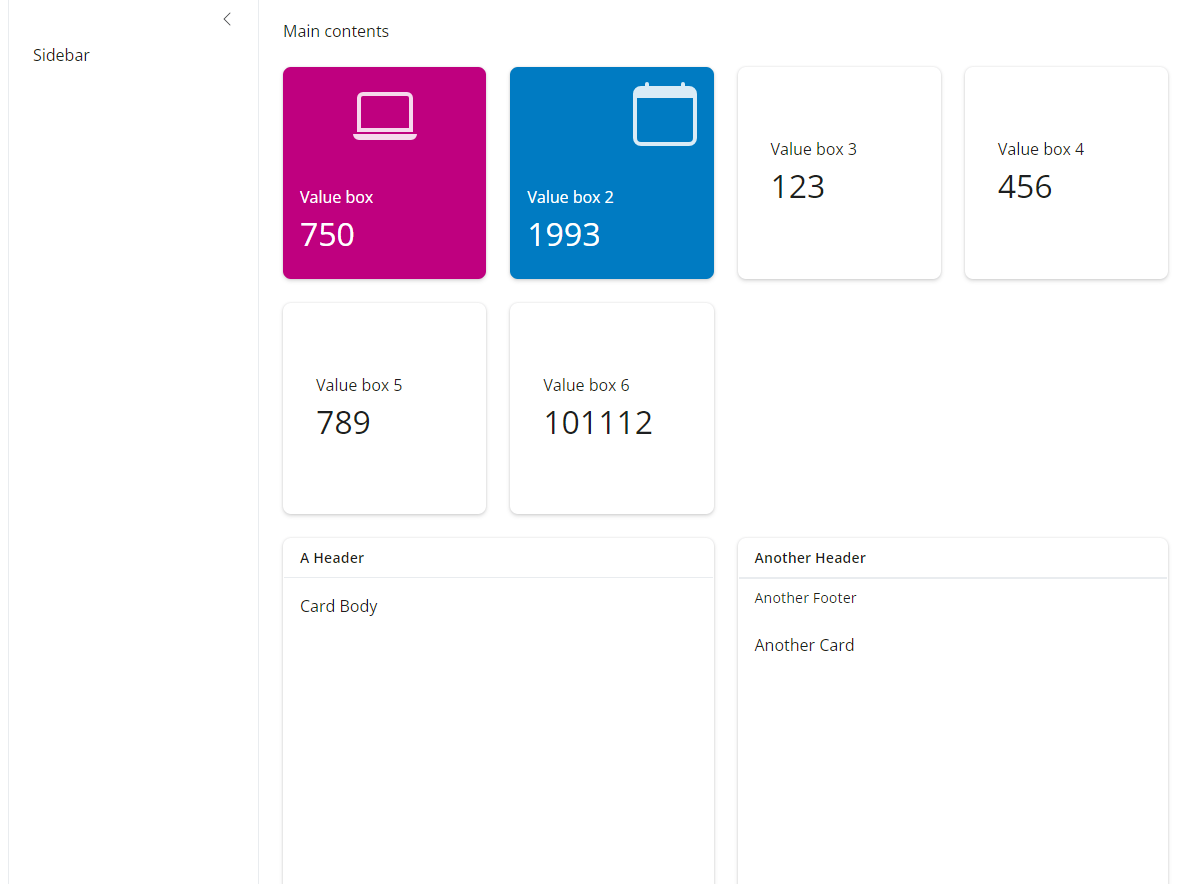

If you have many elements and want them to automatically wrap onto multiple rows (like a responsive grid), you can use layout_column_wrap().

For example, you might want to display six value boxes, but have them wrap automatically depending on screen size:

ui <- page_fluid(

  #-layout------------------------
  layout_sidebar(

    #-sidebar---------
    sidebar = sidebar("Sidebar"),

    #-main pannel content----
    "Main contents",

    # Value Boxes in a single row that wraps responsive to screen size
    layout_column_wrap(
      value_box(
        title = "Value box", # Title
        value = 750,         # Value to show
        showcase = bsicons::bs_icon("laptop"), #include an icon
        theme = "pink" # change the box theme colour
        ),

      value_box(
        title = "Value box 2",
        value = 1993,
        showcase = bsicons::bs_icon("calendar"),
        showcase_layout = "top right",
        theme = "blue"
        ),

      # addiditional boxes
      value_box(title = "Value box 3", value = 123),
      value_box(title = "Value box 4", value = 456),
      value_box(title = "Value box 5", value = 789),
      value_box(title = "Value box 6", value = 101112)
    ),

    # Cards in a single row
    layout_columns(
      card(
        height=400,
        full_screen = TRUE,
        card_header("A Header"),
        card_body("Card Body"),
        card_footer("A Footer")
        ),

      card(
        height = 200,
        full_screen = TRUE,
        card_header("Another Header"),
        card_body("Another Card"),
        card_footer("Another Footer")
        )
      ),
    )
  )

This makes your app much more responsive: as users resize their browser window, the layout adjusts automatically.

Widget Control Elements

Now that we’ve set up a clean layout using bslib, let’s add some interactive functionality, the sidebar is where we direct the user to select inputs the will send messages to the Shiny app. Shiny widgets collect a value from your user. When a user changes the widget, the value will change as well.

Choosing the Right Input controls: A Quick Exploration

Before we add our first user input, it’s helpful to understand a few common types of control widgets in Shiny and when to use them. Inputs allow users to interact with the webpage by clicking a button, entering text, selecting an option, and more.

Shiny provides several ways for users to make selections here are a couple of options:

Input Type	Function	When to Use
Dropdown menu	`selectInput()`	✅ Best for long lists — compact and searchable
Radio buttons	`radioButtons()`	✅ Best for short lists with a few clear options (e.g., Yes/No, 3-4 choices)
Checkbox group	`checkboxGroupInput()`	✅ Best for selecting multiple options
Autocomplete select	`selectizeInput()`	✅ Similar to `selectInput()`, but includes type-ahead search by default
Single checkbox	`checkboxInput()`	✅ Best for simple on/off, true/false inputs
Slider	`sliderInput()`	✅ Best for selecting continuous values or ranges
Numeric input	`numericInput()`	✅ Best for precise numeric entry
Text input	`textAreaInput()`	✅ Best for free text entry (e.g. names, IDs, labels)
Date input	`dateInput()`	✅ Best for selecting a single date
Date range input	`dateRangeInput()`	✅ Best for selecting a start and end date
File upload	`fileInput()`	✅ Best for allowing users to upload files
Action button	`actionButton()`	✅ Best for triggering explicit actions (e.g. submit, run model)

Each widget function requires several arguments. The first two arguments for each widget are

a name for the widget: The user will not see this name, but you can use it to access the widget’s value. The name should be a character string.
a label: This label will appear with the widget in your app. It should be a character string, but it can be an empty string "".

In this example, the name is “action” and the label is “Action”: actionButton("action", label = "Action")

The remaining arguments vary from widget to widget, depending on what the widget needs to do its job. They include things like initial values, ranges, and increments. You can find the exact arguments needed by a widget on the widget function’s help page, (e.g., ?selectInput).

Exercise 4

We might want our dashboard to be able to filter down to one of our provinces in the dataset - lets test out some of these examples above and select the most appropriate option for this.

Replace your sidebar code with the following:

sidebar = list(
  p("Test different input styles. Which one works best for selecting a province from a long list?"),

  selectInput(
    inputId = "dropdown_test", # ID name that can pass to the server as input$dropdown_test for processing
    label = "Dropdown input (selectInput):", # Title the user sees on the UI
    choices = sort(unique(app_data$organisation_unit)) # values to shown in the list drawn from all the unit names in our dataset
  ),

  radioButtons(
    inputId = "radio_test",
    label = "Radio buttons (radioButtons):",
    choices = sort(unique(app_data$organisation_unit))
  ),

  checkboxGroupInput(
    inputId = "checkbox_test",
    label = "Checkbox group (checkboxGroupInput):",
    choices = sort(unique(app_data$organisation_unit))
  )
)

Reflect:

What happens when the list is long?

Which is more space-efficient?

What would help users most?

Show Solution

For this app, we’ll use selectInput() because:

We have many provinces to choose from
We only need one selection at a time
It’s clean, compact, and familiar

Putting it all together

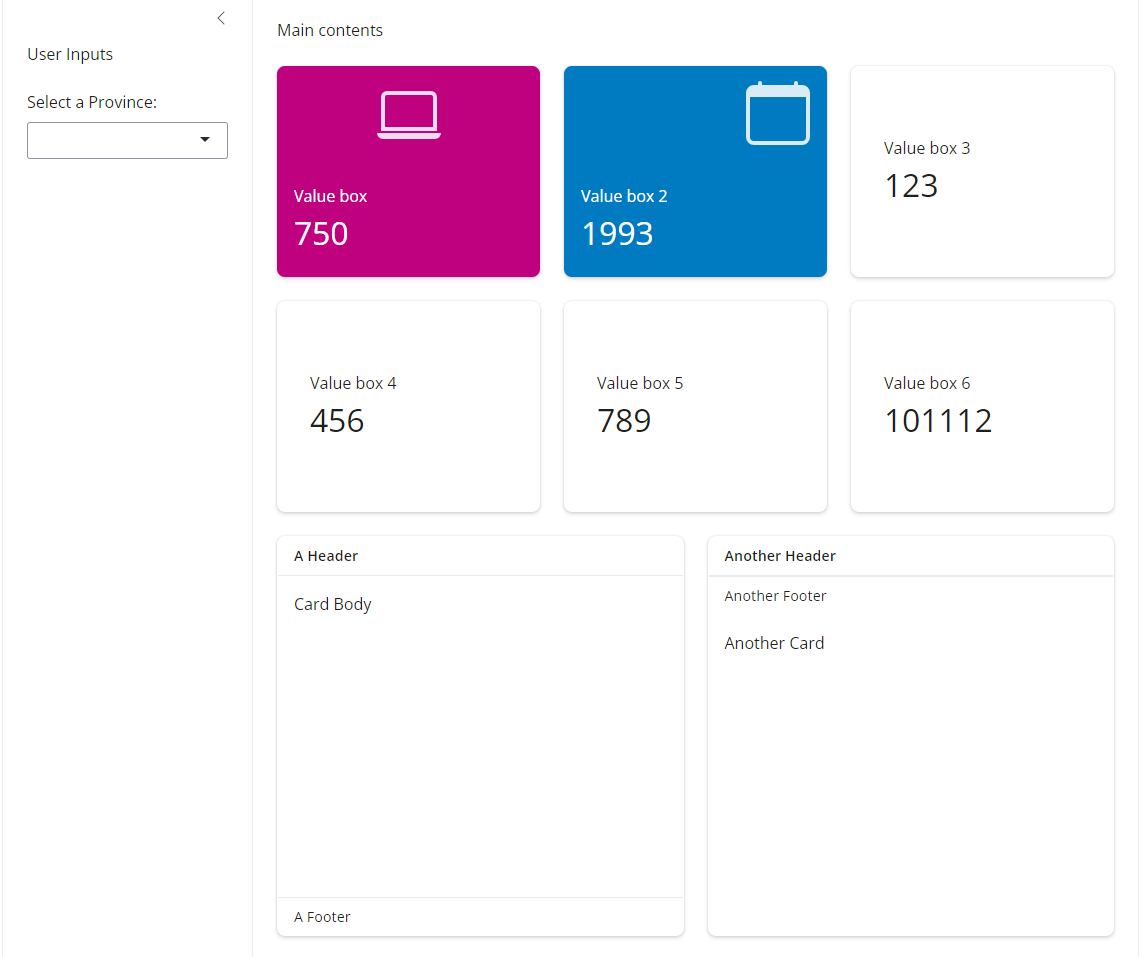

Lets now create the skeleton of our dashboard. Firstly what we want to be able to do is allow user to select a Province from a dropdown list of all the unique values in our dataset.

We’ll start by updating the UI to add a control widget selectInput() that will allow the user to select a Province from our dataset.

   #-sidebar---------
    sidebar = sidebar(

      # Add user input selection
      p("User Inputs"), # Title

      # Province selection input
      selectInput(
        inputId = "province_select",  # ID value
        label = "Select a Province:", # UI side Title
        choices = c("", sort(unique(app_data$organisation_unit))), # empty first value followed by all of our unique org_unit names
        selected = "" # default value that the application starts with as selected - in our case we want this to be blank.
        )
      )

What this is doing:

Function/Argument	Description
`selectInput()`	Adds a dropdown input where users can choose a Province
`inputId = "province_select"`	This ID connects the UI to the server logic (we’ll use it in Part 2)
`choices = ...`	Pulls all Province names from the dataset and sorts them alphabetically
`selected = NULL`	No Province is pre-selected when the app first loads

Pause & Reflect: Where We Are

Before we move forward, take a quick moment to review what you’ve built so far:

✅ You’ve created your own Shiny app from scratch.

✅ You set up a modern dashboard layout using bslib::page_fluid() and layout_sidebar()

✅ You’ve learned how to organize content using:

card() to hold your future plots and tables
value_box() to display key summary indicators
layout_columns() and layout_column_wrap() to control the page structure

✅ You’ve explored how to place interactive control widgets into the sidebar, which will allow users to control the application.

Quick self-check questions

Do you understand the difference between UI and Server parts of the app?
Can you identify where the user interacts (inputs) vs where outputs will be displayed?
Do you feel comfortable adding more cards, value boxes, or inputs to your app?

Part 2 Reactivty and Rendering output

In Part 2, you will learn:

How to add display elements into the dashbaord cards.
How to connect your **Input() to your dataset to generate outputs.
How to update your value boxes and outputs automatically when the user interacts.

In Shiny, reactive expressions automatically update when the user interacts with your app.

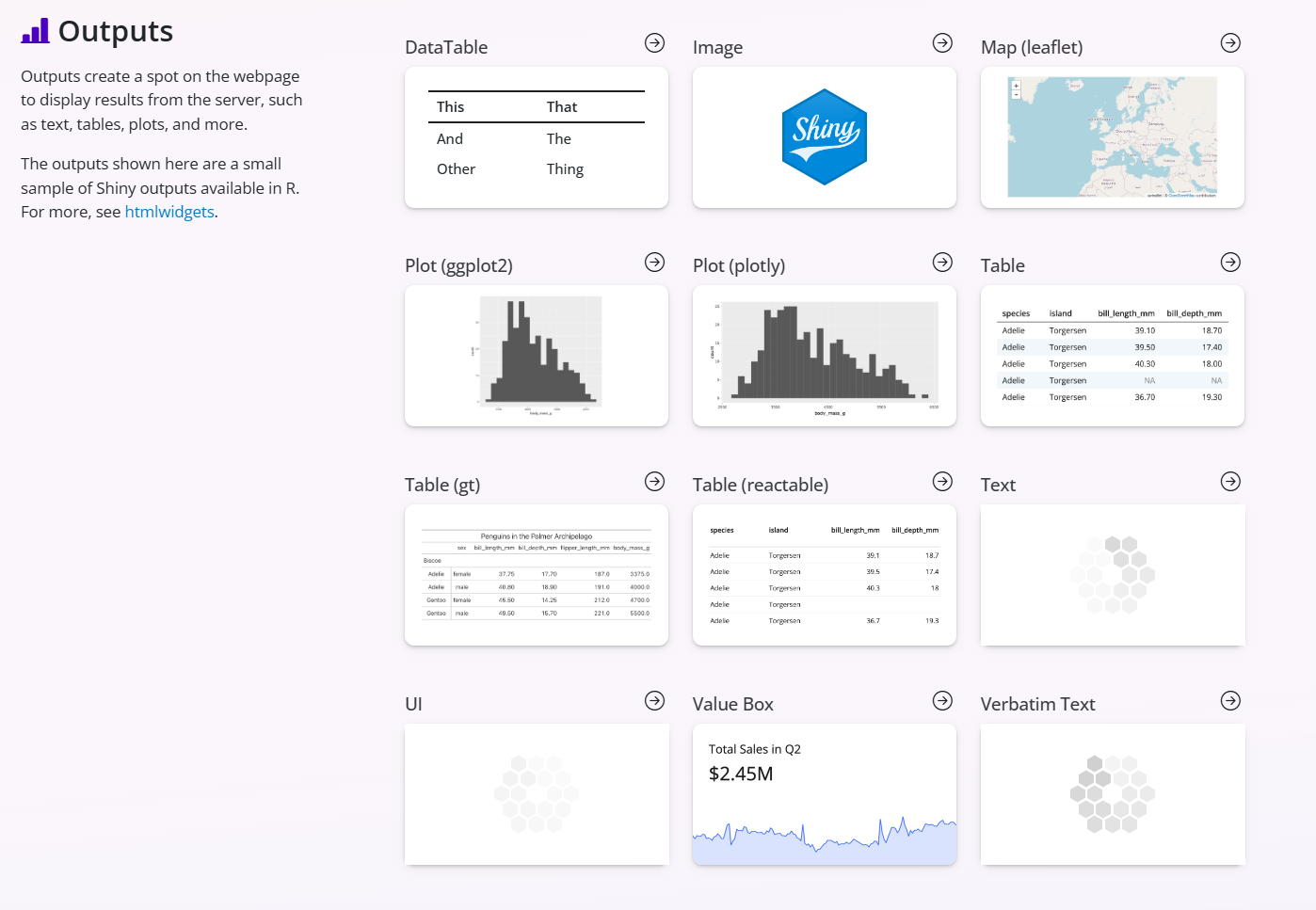

Shiny Output Types

You can create reactive outputs with a two step process.

Add an R object to your user interface.
Tell Shiny how to build the object in the server function. The object will be reactive if the code that builds it calls a widget value.

Shiny provides a family of functions that turn R objects into output for your user interface. Each function creates a specific type of output.

Below is a summary of some key output types, the functions to tell shiny what the expect in the UI and the functions to create it in the server and a short desciption of when to use.

Output Type	Render Function (Server)	Display Function (UI)	When to Use
Text	`renderText()`	`textOutput()`	Display simple text strings
Tables (static)	`renderTable()`	`tableOutput()`	Show small static tables
Tables (interactive)	`renderDT()`	`DT::dataTableOutput()`	Show sortable, searchable tables
Plots (static)	`renderPlot()`	`plotOutput()`	Standard static plots (ggplot, base R plots)
Plots (interactive)	`renderPlotly()`	`plotlyOutput()`	Fully interactive plots (hover, zoom, pan)
Leaflet Maps	`renderLeaflet()`	`leafletOutput()`	Interactive geographic maps
Images	`renderImage()`	`imageOutput()`	Display image files (PNG, JPG, etc.)
UI elements (dynamic)	`renderUI()`	`uiOutput()`	Dynamically generate any custom UI
Value Boxes	(no render function)	`value_box()`	Display single KPI summary values

What you will notice is that Every output type has:

One render function → goes in the server

One output function → goes in the UI

And you connect them using a shared outputId

Building Reactive Outputs: `ui` and `server` crosstalk

Lets work through an example to display the Province that the user selected in the first card of our current dashboard.
We want to show some text that says:

“You have selected: [Province]”

`ui()` side arguements

To do this, we add textOutput() to the UI where we want the text to appear,in this instance we add it to the card_body() call to our first card.

    # Cards in a single row
    layout_columns(
      card(
        height=400,
        full_screen = TRUE,
        card_header("A Header"),
        card_body(textOutput("selected_province_text")), # add textOutput to display selected province),
        card_footer("A Footer")
        ),

      card(
        height = 200,
        full_screen = TRUE,
        card_header("Another Header"),
        card_body("Another Card"),
        card_footer("Another Footer")
        )
      )

Note

Notice that textOutput takes an argument, the character string "selected_province_text". Each of the *Output functions require a single argument: a character string that Shiny will use as the name of your reactive element. Your users will not see this name, but you will use it later.

Placing a function in ui tells Shiny where to display your object. Next, you need to tell Shiny how to build the object.

We do this by providing the R code that builds the object in the server function.

`server()` side arguements

The server function plays a special role in the Shiny process; it builds a list-like object named output that contains all of the code needed to update the R objects in your app. Each R object needs to have its own entry in the list.

You can create an entry by defining a new element for output within the server function, like below. The element name should match the name of the reactive element that you created in the ui.

In the server function below, output$selected_province_text matches textOutput("selected_province_text ") in your ui.

server <- function(input, output) {

  output$selected_province_text <- renderText({
    # If nothing is selected, show a default message
    if (input$province_select == "") {
      "No Province Selected"
    } else {
    # otherwise show the selected value
      paste("You have selected:", input$province_select)
    }
  })

}

input is a second list-like object created by the server function. It stores the current values of all of the widgets in your app. These values will be saved under the names that you gave the widgets in your ui.

So for example, our app has a widget named "province_select" .The values of "province_select" will be saved in input as input$province_select.

Shiny will automatically make an object reactive if the object uses an input value. For example, the server function above creates a reactive line of text by calling the value of the select box widget to build the text.

When the user changes the province name the text outoput will update automatically - try this out.

What you just learned:

Part	Code
UI	`textOutput("selected_province_text")`
Server	`output$selected_province_text <- renderText({ ... })`
Link	Both use the same ID: `"selected_province_text"`

Each entry to output$ <- should contain the output of one of Shiny’s render* functions. These functions capture an R expression and do some light pre-processing on the expression. Use the render* function that corresponds to the type of reactive object you are making (Pairs are listed in the table above).

Each render* function takes a single argument: an R expression surrounded by braces, {}. The expression can be one simple line of text, or it can involve many lines of code, as if it were a complicated function call.

Think of this R expression as a set of instructions that you give Shiny to store for later. Shiny will run the instructions when you first launch your app, and then Shiny will re-run the instructions every time it needs to update your object.

For this to work, your expression should return the object you have in mind (a piece of text, a plot, a data frame, etc.). You will get an error if the expression returns the wrong type of object.

Reactivity and Data

In the previous step our app simply reacts to the user input and displays the Province - now we want to also tell our App to do more with that information by filtering and displaying summary data from our DHIS2 data pull.

We want to compute (for now):

Total number of malaria cases reported in the selected province for the year

We know our dataset is called app_data, and malaria cases are stored where var_name == "malaria_cases".

Inside your server() function, add:

server <- function(input, output) {

  # Reactive data filter - filter the app_data when input value is selected
  province_data <- reactive({
    req(input$province_select != "")  # Only run if province selected

    app_data %>%
      filter(organisation_unit == input$province_select) # filter dataset to Province selected
  })

  # Compute total cases from filtered data
  output$total_cases_box <- renderText({
    df <- province_data() # this act like a function and pulls through our filtered data to an object inside renderText called 'df'

    total_cases <- df %>%
      filter(var_name == "malaria_cases") %>% # filters to malaria cases data only
      summarise(total = sum(value, na.rm = TRUE)) %>% # sums values over all periods included
      pull(total) # pulls out the value from summary calculation into named vector

    total_cases # final value
  })
}

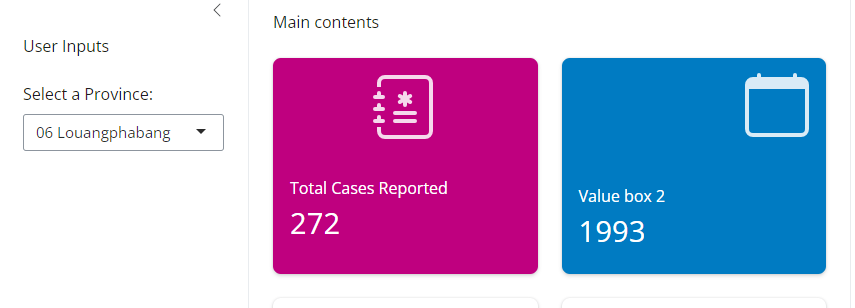

Here we have made our province_data() object reactive - what this means is that every time input$province_select changes, Shiny will automatically re-execute any code that depends on province_data().

We use the filtered province_data() in the output$total_cases_box to then create a single value of total cases reported that year.

We’re using renderText() as our server side output function - we need to feed this information to our updated value_box() UI code next.

We want to replace the value argument with the dynamic text from our server "total_cases_box". In your ui, replace the original value box with:

  value_box(
        title = "Total Cases Reported",
        value =  textOutput("total_cases_box"), # reactive value taken from server side outputs
        showcase = bsicons::bs_icon("journal-medical"),
        showcase_layout = "top right",
        theme = "pink"
      )

Summary of updates

Reactive filter	`province_data <- reactive({ ... })`
Computation	`summarise()` inside `renderText()`
Output rendering	`output$total_cases_box <- renderText({ ... })`
UI linkage	`value = textOutput("total_cases_box")`

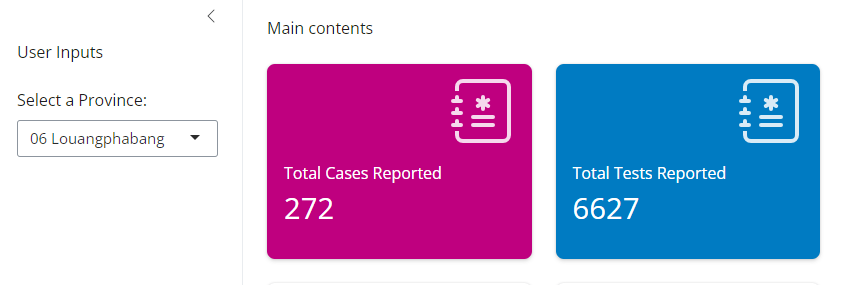

Exercise 5

Update the second value box to compute and display total annual tests (var_name == "malaria_tests"), update the icon to match the data reporting type, and remove the remaining value boxes for now,

Show Solution

# update the value box to contain a renderOutput call
 value_box(
        title = "Total Tests Reported",
        value = textOutput("total_tests_box"), #render output call
        showcase = bsicons::bs_icon("journal-medical"), # update icon
        showcase_layout = "top right",
        theme = "blue"
      )

 #-Compute total tests from filtered data--------------------------------------------
  output$total_tests_box <- renderText({

    df <- province_data() # pull filtered province data

    total_tests <- df %>%
      filter(var_name == "malaria_tests") %>%
      summarise(total = sum(value, na.rm = TRUE)) %>% #sum total tesats
      pull(total)

    total_tests # return value

  })

Good job! We’ll come back to our value boxes later to add more functionality, but for now let’s focus on adding a time series plot to visualize the reported malaria cases over time.

Adding a Reactive Plot

Now that we have our value boxes displaying total cases and tests, let’s add a time series plot to visualize malaria cases over time for the selected Province.

We’ll use: plotlyOutput() in our UI card to reserve a space for an interactive chart.

Lets update one of our existing cards to include a plotly output.

layout_columns(
      card(
        height=400,
        full_screen = TRUE,
        card_header("Monthly Malaria Cases"),    # informative card header
        card_body(plotlyOutput("ts_plot")),      # include plotlyOutput in the card body and name this output ts_plot
        card_footer("Data source: DHIS2 export") #informative card footer
        ),

      card(
        height = 200,
        full_screen = TRUE,
        card_header("Another Header"),
        card_body("Another Card"),
        card_footer("Another Footer")
        )
      )

This creates a card with a header, a plotly output area, and a footer. The plotlyOutput("ts_plot") is where our time series plot will go.

Now that we’ve created a space for our plot in the UI, it’s time to write the server-side logic that:

Creates a time series plot of malaria cases
Displays that plot inside the ts_plot output that we just specified

Add the following code to the server function:

#-Plot of reported cases over time selected by province---------------------------------
  output$ts_plot <- renderPlotly({

    df <-
      province_data()  %>%  # get province data
      filter(var_name == "malaria_cases") # reduce to cases

      req(nrow(df) > 0)              # Ensure there are rows to plot

      # Create a ggplot time series of time on the xaxis cases on the y
      p <-
        ggplot(df, aes(x = period, y = value)) +
        geom_line() +  #add line style
        geom_point() + # add points to the line
        labs(
          title = paste("Confirmed Malaria Cases in:", input$province_select), # add selected province to the title
          x = "Month",
          y = "Confirmed Cases"
        ) +
        theme_minimal()

      # Convert ggplot to interactive Plotly object
      ggplotly(p)

    })

What this is doing:

renderPlotly(): Tells Shiny how to render the plotlyOutput() in the UI
ggplot(): creates a time series plot with geom_line() to show the trend of confirmed cases over time.
ggplotly(): converts the ggplot object to a Plotly object for interactivity.

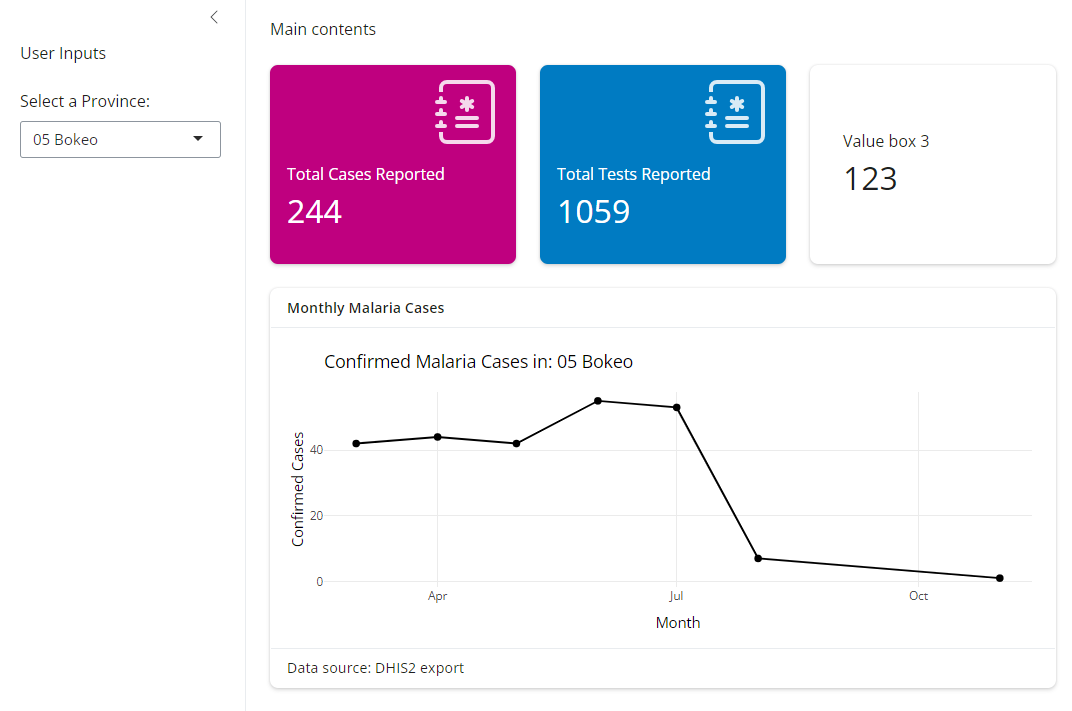

Test It

Run your app and try the following:

Select a Province from the dropdown
Watch the plot appear in the card
Hover over points to see values
Try selecting a different Province, the plot updates automatically!

Note

📊 Plotly for Interactive Plots

The Plotly package allows you to turn static ggplot2 charts into interactive visualizations. This means users can hover over points, zoom in, pan across the plot, and see tooltips with data values.

In Shiny, this is especially useful for dashboards where you want dynamic, user-driven exploration of your data.

We use the ggplotly() function to convert a regular ggplot object into a Plotly object, making it fully interactive with minimal changes to your code.

Just remember that not all ggplot2 features translate perfectly, some customization may require testing or tweaking. Or you can always build plots directly using Plotly code but for now we’ll stick with ggplot > ploty conversion.

Exercise 6 -7:

Modify the plot to include both confirmed cases and malaria tests as two lines (different colors). Hint: check back in your DHIS2 extraction slides for an example plotting multiple indicators. Hint: edit the var_name %in% c()filter to select both indicators. Once rendered plotly has an option to view both hover labels at the same time - see if you can make this work in your local app.

Show Solution

First update the card header

  card(
        height=400,
        full_screen = TRUE,
        card_header("Monthly Malaria Indicators"),    # Update informative card header
        card_body(plotlyOutput("ts_plot")),
        card_footer("Data source: DHIS2 export")
        )

Add the addiditional variable call in the filter and include plot colours - here i’ve selected those in AMMnet Branding.

#-Plot of reported values over time selected by province---------------------------------------
 output$ts_plot <- renderPlotly({

    df <-
      province_data()  %>%  # get province data
      filter(var_name %in%  c("malaria_cases", "malaria_tests")) # reduce to cases AND tests

      req(nrow(df) > 0)              # Ensure there are rows to plot

      # Create a ggplot time series of time on the xaxis cases on the y, colour by data type
      p <-
        ggplot(df, aes(x = period, y = value, col=var_name)) +
        geom_line() +  #add line style
        geom_point() + # add points to the line
        labs(
          title = paste("Malaria Indicators Cases in:", input$province_select), # add selected province to the title and change name
          x = "Month",
          y = "Value",   # Update
          col="Indicator" # Update
        ) +
        scale_color_manual(values = c("malaria_cases" = "#571845", "malaria_tests" = "#C42847"))+ # set the colour values
        theme_minimal()

      # Convert ggplot to interactive Plotly object
      ggplotly(p)

    })

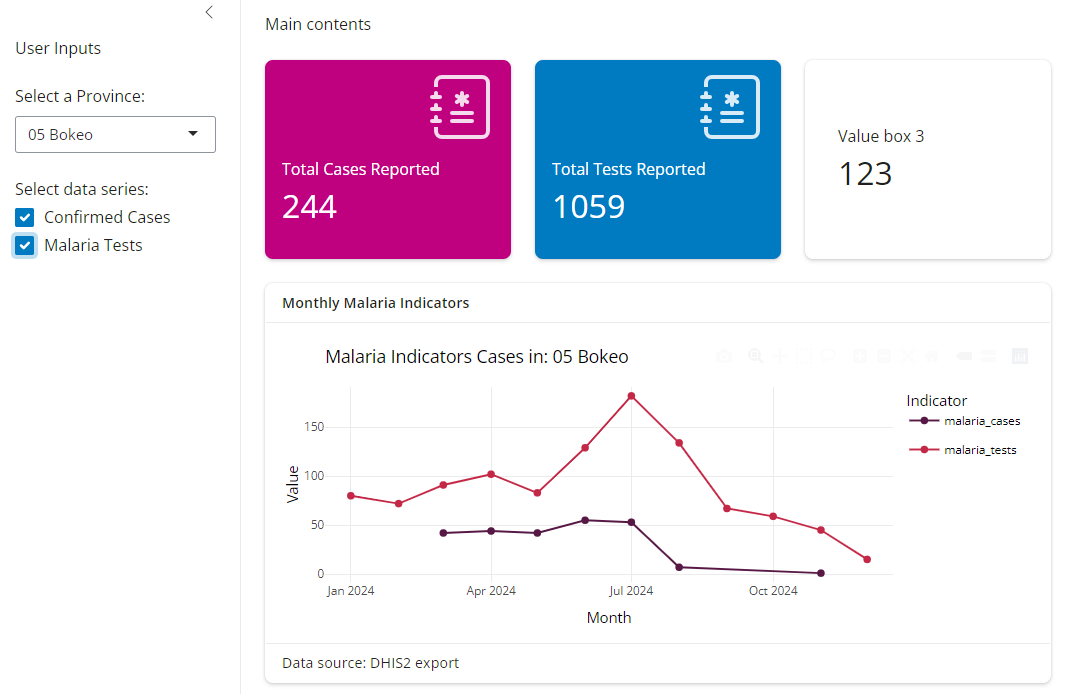

Add a new input selection that lists the two data elements (“confirmed cases”, “malaria tests”) so users can toggle which series appear. Hint use: checkboxGroupInput() to allow multiple selections to be toggeled on and off. Hint think carefully about how to use the new input$ value to filter the dataset.

💡 Show Solution

    #-sidebar---------
    sidebar = sidebar(

      # Add user input selection
      p("User Inputs"), # Title

      # Province selection
      selectInput(
        inputId = "province_select",  # ID value
        label = "Select a Province:", # UI side Title
        choices = c("", sort(unique(app_data$organisation_unit))), # empty first value followed by all of our unique org_unit names
        selected = "" # default value that the application starts with as selected - in our case we want this to be blank.
        ),

      # Data series toggle
      checkboxGroupInput(
        inputId = "series_select", # give usable ID
        label = "Select data series:", # UI side title
        choices = c("Confirmed Cases" = "malaria_cases", # filter variables with nice formatting for the UI
                    "Malaria Tests"  = "malaria_tests"),
        selected = NULL #ensure selection is empty initially
      )
      )

#-Plot of reported values over time selected by province---------------------------------------
output$ts_plot <- renderPlotly({

    df <-
      province_data()  %>%  # get province data
      filter(var_name %in% input$series_select) # Get the filtered data as per input

      req(nrow(df) > 0)              # Ensure there are rows to plot

      # Create a ggplot time series of time on the xaxis cases on the y, colour by data type
      p <-
        ggplot(df, aes(x = period, y = value, col=var_name)) +
        geom_line() +  #add line style
        geom_point() + # add points to the line
        labs(
          title = paste("Malaria Indicators Cases in:", input$province_select), # add selected province to the title and change name
          x = "Month",
          y = "Confirmed Cases",
          col="Indicator"
        ) +
        scale_color_manual(values = c("malaria_cases" = "#571845", "malaria_tests" = "#C42847"))+ # set the colour values
        theme_minimal()

      # Convert ggplot to interactive Plotly object
      ggplotly(p)

    })

End of Part 2 — What You’ve Built So Far

✅ You now have a fully reactive dashboard skeleton:

Inputs: User selects a Province and which data series to view.
Reactive filtering: The app filters the dataset automatically.
Outputs:
- Value boxes update in real-time
- Interactive time series plots update dynamically
- You’ve seen how both text-based and graphical outputs follow the same reactivity pattern.

Part 3: Evolving Features - Making Our App Better!

Now that we’ve built the basic functionality of our dashboard, let’s improve the user experience, visual polish and ensure that all cards and value boxes contain useful information to the end-user.

Firstly here are small enhancements that go a long way in making your app more intuitive, accessible, and navigable for the user.

Adding messages and prompts 📧

When we first launch the app, the dashboard appears blank until a user selects a Province and at least one data series. While this is expected, it might not be intuitive for users who are unfamiliar with how the app works.

To improve the user experience, we can add helpful messages that appear when required inputs are missing. This kind of feedback, often referred to as conditional UI messaging, helps guide users through the app and ensures they understand what to do next.

We’ll use the validate() and need() functions from Shiny to conditionally display informative prompts in place of a plot until the required input is provided.

To do this we can add the following code to the top of all of our server code for value boxes add:

# condiditional messaging -  Check if province selection is made and if not display the following message
validate(
  need(input$province_select != "", "Select a province")
  )

To the plot server code add the following:

# condiditional messaging -  Check if province selection is made and if not display the following message
# Check if data selected and prompt to select data series
validate(
  need(input$province_select != "", "Please select a province to view data."),
  need(length(input$series_select) > 0, "Please select at least one data elemtent to generate the plot.")
  )

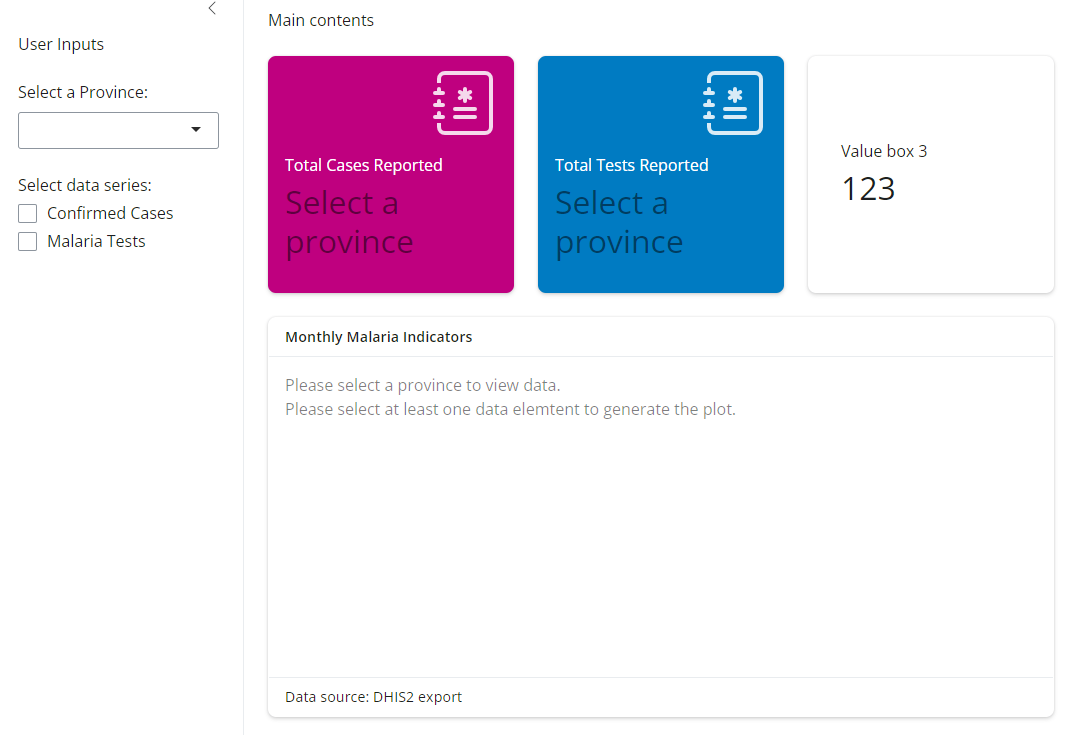

What This Does:

validate() Tells Shiny to check conditions before rendering output
need() Provides a custom message that is shown in the output space when a condition isn’t met.
These messages appear in the same area where the plot would go, giving users immediate, contextual guidance.

Adding a Short Description of the Application 🖊️

As we continue to improve the user experience, it’s helpful to provide some context or instructions directly in the app. One simple but effective enhancement is adding a short descriptive text at the top of the sidebar panel and a Title to the main plot output.

This gives users a quick overview of what the tool does, what the inputs mean, or what they should expect to see - without needing to refer to an external guide.

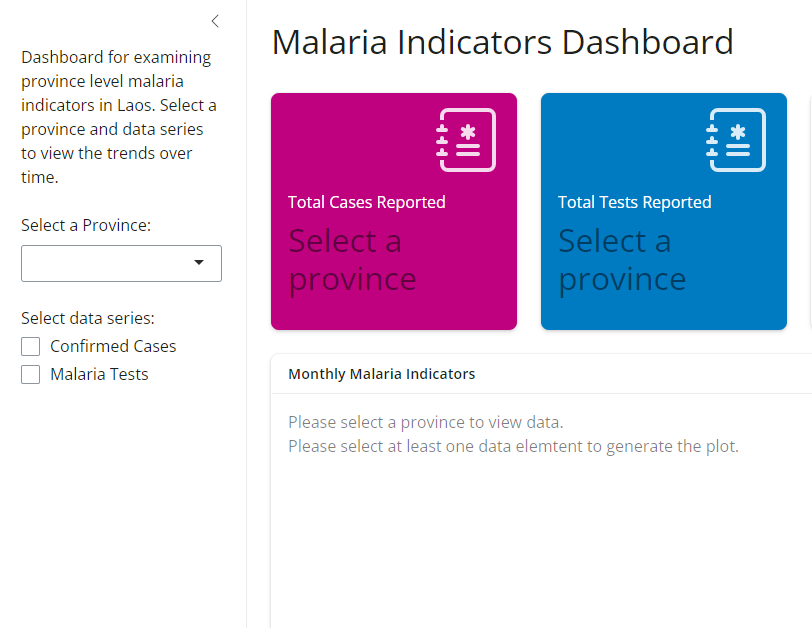

Exercise 8

In your ui replace the p("User Inputs") with a more informative description. And add a main title to replace "Main contents" . Hint use the function h1(" ") to add your title as this will give it a Header level 1 style.

Show Solution

    #-sidebar---------
    sidebar = sidebar(

      # informative title
      p("Dashboard for examining province level malaria indicators in Laos.
         Select a province and data series to view the trends over time."),

      # Province selection
      selectInput(
        inputId = "province_select",  # ID value
        label = "Select a Province:", # UI side Title
        choices = c("", sort(unique(app_data$organisation_unit))), # empty first value followed by all of our unique org_unit names
        selected = "" # default value that the application starts with as selected - in our case we want this to be blank.
        ),

      # Data series toggle
      checkboxGroupInput(
        inputId = "series_select", # give usable ID
        label = "Select data series:", # UI side title
        choices = c("Confirmed Cases" = "malaria_cases", # filter variables with nice formatting for the UI
                    "Malaria Tests"  = "malaria_tests"),
        selected = NULL #ensure selection is empty initially
      )
      ),

    #-main pannel content----
    h1("Malaria Indicators Dashboard"), # Main title of the app

What This Does:

The p() function inserts a paragraph of plain text at the top of the sidebar.
This lightweight description gives users quick context about what they’re seeing and how to interact with the app.

Keep this description short and scannable. If you want to include more detailed information (e.g., methodology or indicator definitions), we could use a collapsible help text, a modal popup, or a separate “About” tab - we’ll suggest some resources for this later in the tutorial.

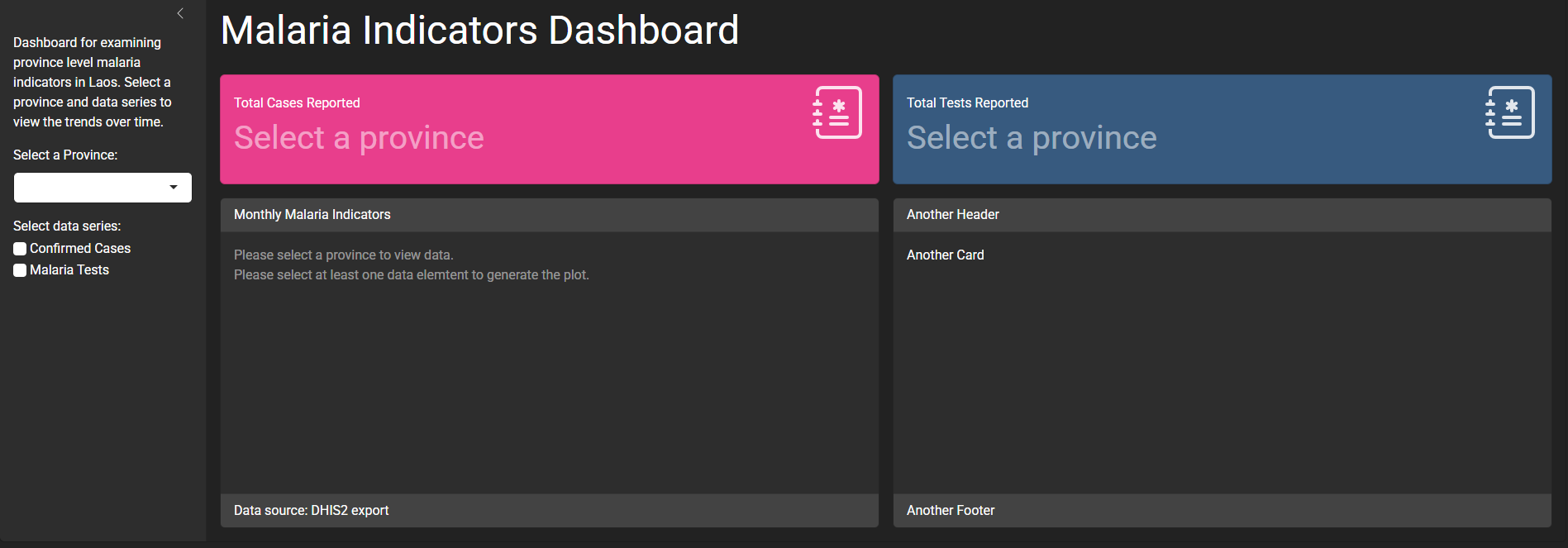

Theming with `bs_theme` 🎨

Until now, our dashboard has been using the default Shiny style: functional,but plain and we added colour values to our value_box. We can now take advantage of the bslib package to apply modern, responsive theming with just a few lines of code (via bootswatch).

Applying a theme makes your app easier to use, improves readability, and gives it a more professional look - especially useful when sharing with stakeholders or integrating into your organization’s brand.

We can tell our app directly to use a built-in theme in the UI code:

#-Define UI for application - User Interface------------------------------------
ui <- page_fluid(

  #-layout------------------------
  layout_sidebar(

    #-sidebar---------
    sidebar = sidebar(

      # informative title
      p("Dashboard for examining province level malaria indicators in Laos.
         Select a province and data series to view the trends over time."),

      # Province selection
      selectInput(
        inputId = "province_select",  # ID value
        label = "Select a Province:", # UI side Title
        choices = c("", sort(unique(app_data$organisation_unit))), # empty first value followed by all of our unique org_unit names
        selected = "" # default value that the application starts with as selected - in our case we want this to be blank.
        ),

      # Data series toggle
      checkboxGroupInput(
        inputId = "series_select", # give usable ID
        label = "Select data series:", # UI side title
        choices = c("Confirmed Cases" = "malaria_cases", # filter variables with nice formatting for the UI
                    "Malaria Tests"  = "malaria_tests"),
        selected = NULL #ensure selection is empty initially
      )
      ),

    #-main pannel content----
    h1("Malaria Indicators Dashboard"), # Main title of the app

    # Value Boxes in a single row that wraps responsive to screen size
    layout_column_wrap(
      value_box(
        title = "Total Cases Reported",
        value =  textOutput("total_cases_box"), # reactive value taken from server side outputs
        showcase = bsicons::bs_icon("journal-medical"),
        showcase_layout = "top right",
        theme = "pink"
      ),

      value_box(
        title = "Total Tests Reported",
        value = textOutput("total_tests_box"), #render output call
        showcase = bsicons::bs_icon("journal-medical"), # update icon
        showcase_layout = "top right",
        theme = "blue"
      )

      # addiditional boxes
      # value_box(title = "Value box 3", value = 123),
      # value_box(title = "Value box 4", value = 456),
      # value_box(title = "Value box 5", value = 789),
      # value_box(title = "Value box 6", value = 101112)
      ),

    # Cards in a single row
    layout_columns(
      card(
        height=400,
        full_screen = TRUE,
        card_header("Monthly Malaria Indicators"),    # informative card header
        card_body(plotlyOutput("ts_plot")),      # include plotlyOutput in the card body and name this output ts_plot
        card_footer("Data source: DHIS2 export") #informative card footer
        ),

      card(
        height = 200,
        full_screen = TRUE,
        card_header("Another Header"),
        card_body("Another Card"),
        card_footer("Another Footer")
        )
      )
    ),

  # <<< NEW >>> Defining the theme of your app
  theme = bs_theme(
    version = 5,                       # Use Bootstrap 5
    bootswatch = "darkly",             # Choose a Bootswatch theme
    base_font = font_google("Roboto")  # Optional: use a modern font
  )

)

Exercise 9

Try replacing "darkly" with other Bootswatch themes like "cosmo", "journal", "sandstone", "minty", or "cybord" or select from the webpage linked.

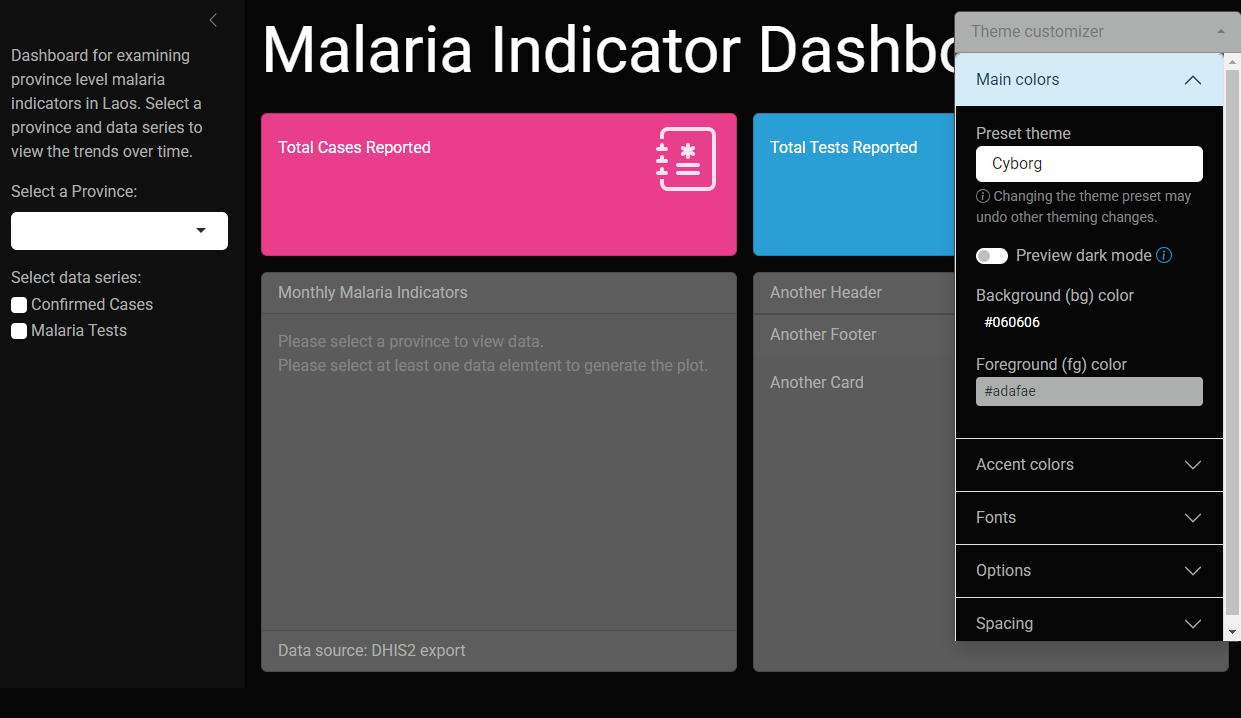

You can also try out styles live inside your app using bs_themer(). To use it, just call bs_themer() once inside your server() function:

server <- function(input, output) {

  bs_themer()

  # The rest of our code ...

}

As well as experimenting with pre-built themes you can also customise your own theming using the bs_themer for example if I played around in the theming and decided I wanted to use some colours similar to the AMMnet branding I could do this and then in my R console bs_themer lets us know what we changed and then we can add this to our theme = bs_theme() call. This is really helpful for playing with branding of your app to match with your organisations branding.

 theme = bs_theme(
        version = 5,
        fg = "rgb(100, 16, 59)",   # set the foreground colour
        bg = "rgb(253, 251, 252)", # set the background colour
        primary = "#7C204F",       # set the primary colour
        secondary = "#F7CBE6"      # set the secondary colour
    )

Caution

Don’t forget to remove bs_themer() from the server() once you’re done — it’s just for development.

To give users the opportunity to pick between a light or dark mode of your dashboard too you can simply implement the following in the ui

Here we place it after the description in the sidebar but you can place it anywhere in the UI and set the default to start the app in light mode.

# add dark/light switch
input_dark_mode(mode="light")

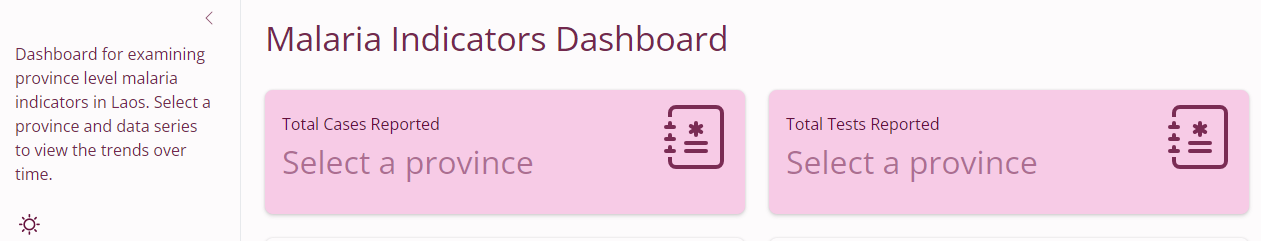

Now we have developed a theme we have another option for how to set the theme arguement for our value boxes. To ensure that when we change the theme of our app our value boxes automatically align with that theme we can set the theme arguement to be "primary" or “secondary" and the boxes will inherit the colour values of the themes primary and secondary colours - let’s add this now.

# Value Boxes in a single row that wraps responsive to screen size
    layout_column_wrap(
      value_box(
        title = "Total Cases Reported",
        value =  textOutput("total_cases_box"), # reactive value taken from server side outputs
        showcase = bsicons::bs_icon("journal-medical"),
        showcase_layout = "top right",
        theme = "secondary" # app theme colour secondary
      ),

      value_box(
        title = "Total Tests Reported",
        value = textOutput("total_tests_box"), #render output call
        showcase = bsicons::bs_icon("journal-medical"), # update icon
        showcase_layout = "top right",
        theme = "secondary" #app theme colour secondary
      )

      # addiditional boxes
      # value_box(title = "Value box 3", value = 123),
      # value_box(title = "Value box 4", value = 456),
      # value_box(title = "Value box 5", value = 789),
      # value_box(title = "Value box 6", value = 101112)
      )

Exercise 10

Now you have the value boxes set to inherit theme colours test out some more themes are render your app to see how these automatically change. Hint: try setting each value box theme to a different value.

Adding a Logo to Your App

Once you’ve customized the colors and fonts, finish off your look by adding a logo (or icon/banner) to the top of your sidebar = sidebar() code.

#-sidebar---------
sidebar = sidebar(
  # add a logo
  tags$img(src = "AMMnet-logo.png"), # make sure this image exists in a folder called www

Then do the following:

Folder Setup

Create a www/ folder in your app directory if it doesn’t exist.
Save your logo or image as logo.png (or any name but it must match what you coded up).
Shiny will automatically read image files from that folder.

Exercise 11

Find a logo online (e.g., your org, a flag, or malaria-related symbol or an image of your pet). Create and save it to your app’s www/ folder. Add it to the sidebar using tags$img().

Wrapping up Part 3 — Building for the User

In Part 3, we made your app feel more professional and intuitive for end users:

Added validation messages to guide users when inputs are missing.
Included descriptive text in your sidebar and main title.
Applied a customizable visual theme with {bslib}.
Enhanced branding by adding a logo.
Made sure your value boxes inherit theme colors automatically.

These are small details — but they make your app feel polished, intentional, and ready to share with end users.

Part 4: Addiditional Outputs

Now that we’ve built a simple reactive and styled our app, let’s level up by introducing addiditional output types and features so that we can convey more information than what we have currentlly presented in our app.

A reminder that Shiny supports a wide range of different output types

We’ll walk through some different examples of outputs how we can control their appearance/dissapearance in the app.

Computed Variables and Conditional Widgets

One of the powerful benefits of building dashboards in R is that we can compute new indicators directly inside our Shiny app using the data already loaded.

Let’s take Test Positivity Rate (TPR) as an example. This isn’t directly stored in our dataset but can easily be computed:

TPR = Confirmed Cases / Malaria Tests

We will create this as a computed reactive output, and allow the user to toggle whether they want to view this indicator.

This approach is helpful in malaria dashboards where:

Some indicators are derived
Users may want optional, on-demand metrics
You want to avoid recalculating unnecessary metrics until they are requested

Let’s start by giving the user a checkbox to control whether to calculate and display TPR:

Below our current data series selection include a new Input:

    #-sidebar---------
    sidebar = sidebar(

      # add a logo
      tags$img(src = "AMMnet-logo.png"), # make sure this image exists in a folder called www

      # informative title
      p("Dashboard for examining province level malaria indicators in Laos.
         Select a province and data series to view the trends over time."),

      # add dark/light switch
      input_dark_mode(mode="light"),

      # Province selection
      selectInput(
        inputId = "province_select",  # ID value
        label = "Select a Province:", # UI side Title
        choices = c("", sort(unique(app_data$organisation_unit))), # empty first value followed by all of our unique org_unit names
        selected = "" # default value that the application starts with as selected - in our case we want this to be blank.
        ),

      # Data series toggle
      checkboxGroupInput(
        inputId = "series_select", # give usable ID
        label = "Select data series:", # UI side title
        choices = c("Confirmed Cases" = "malaria_cases", # filter variables with nice formatting for the UI
                    "Malaria Tests"  = "malaria_tests"),
        selected = NULL #ensure selection is empty initially
      ),

      # Test Positivity toggle
      checkboxInput(
        inputId = "include_tpr", # name ID
        label = "Calculate and diaplay Test Positivity Rate (TPR)", # User side title
        value = FALSE # set to be unclicked as default
      )
      )

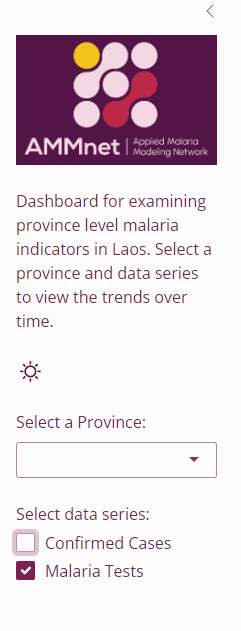

However — we only want this checkbox to be available when both malaria_cases and malaria_tests are selected for plotting. Otherwise, calculating TPR doesn’t make sense.

Shiny allows us to dynamically render UI elements using renderUI(). We’ll modify our sidebar to only display the TPR toggle when both series are selected. Replace the code in the ui with:

# <<< Replace static checkbox with this dynamic output using the uiOutput() call
uiOutput("tpr_checkbox_ui")

Then add this logic to your server() function:

#-Conditional UI element for TPR checkbox------------------------------------------------------
  output$tpr_checkbox_ui <- renderUI({

    if (all(c("malaria_cases", "malaria_tests") %in% input$series_select)) {
      # Only show the checkbox if both series are selected
      checkboxInput(
        inputId = "include_tpr", # name ID
        label = "Calculate and diaplay Test Positivity Rate (TPR)", # User side title
        value = FALSE # set to be unclicked as default
      )
    } else {
      # If not both series selected, return NULL to not display the checkbox
      NULL
    }
  })

Once the toggle exists, we can build a reactive plot that only displays if:

A province is selected
Both indicators are selected
The TPR checkbox is enabled

Inside the UI element update the empty card with the following logic:

   # Cards in a single row
    layout_columns(
      card(
        height=400,
        full_screen = TRUE,
        card_header("Monthly Malaria Indicators"),# informative card header
        card_body(plotlyOutput("ts_plot")),       # include plotlyOutput in the card body and name this output ts_plot
        card_footer("Data source: DHIS2 export")  #informative card footer
        ),

      card(
        height = 400,
        full_screen = TRUE,
        card_header("Monthly Malaria Test Positivity"), # informative card header
        card_body(plotlyOutput("tpr_plot")), # include plotlyOutput in the card body and name this output tpr_plot
        card_footer("Data source: DHIS2 export") # informative card footer
        )
      )
      )

Inside your server() function we can add new plot code along with some addiditional prompts to the user:

#-Conditional rendering of TPR plot------------------------------------------------------------
  output$tpr_plot <- renderPlotly({

    # Use validate + need to provide informative user messages
    validate(
      need(input$include_tpr, "Enable TPR toggle to display plot."),
      need(input$province_select != "", "Please select a province to view data."),
      need(length(input$series_select) == 2, "Please select both malaria cases and malaria tests to calculate TPR.")
    )

    # calculate TPR - Test Positivity Rate
    df <-
      province_data() %>% # get the filtered province data
      pivot_wider(names_from = var_name, values_from = value) %>% # pivot the data wider to have cases and tests in separate columns
      arrange(period) %>% # arrange by period
      mutate(
        tpr = round((malaria_cases / malaria_tests) * 100, 2) # calculate TPR as a percentage - rounded to 2 decimal places
      )

    # Plot the TPR over time
    p <-
      ggplot(df, aes(x = period, y = tpr)) +
      geom_point(color = "#FECC01") +
      labs(
        title = paste("Test Positivity Rate (TPR) in:", input$province_select), # add selected province to the title
        x = "Month",
        y = "TPR (%)"
      ) +
      theme_minimal() +
      scale_y_continuous(limits = c(0, 100)) # set y-axis limits from 0 to 100%

    ggplotly(p) # convert ggplot to plotly object

  })

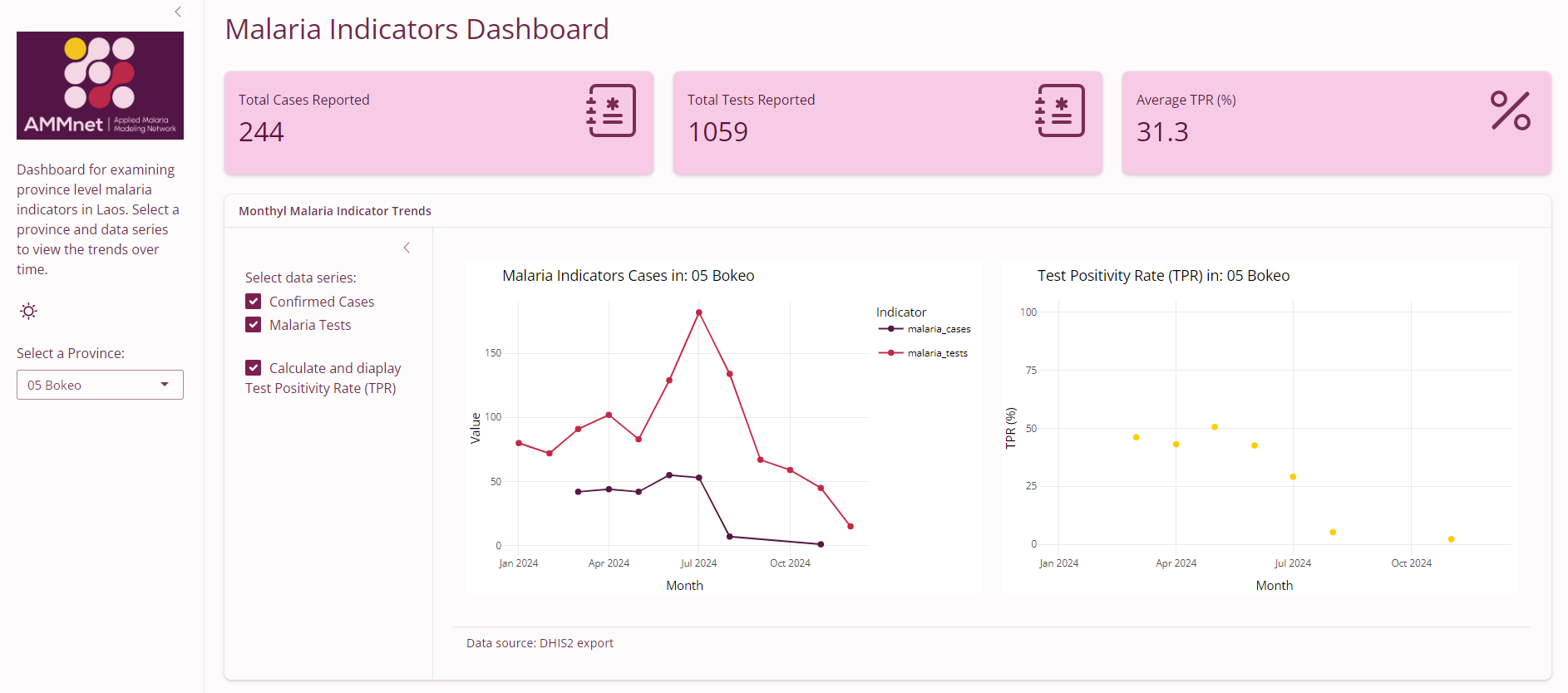

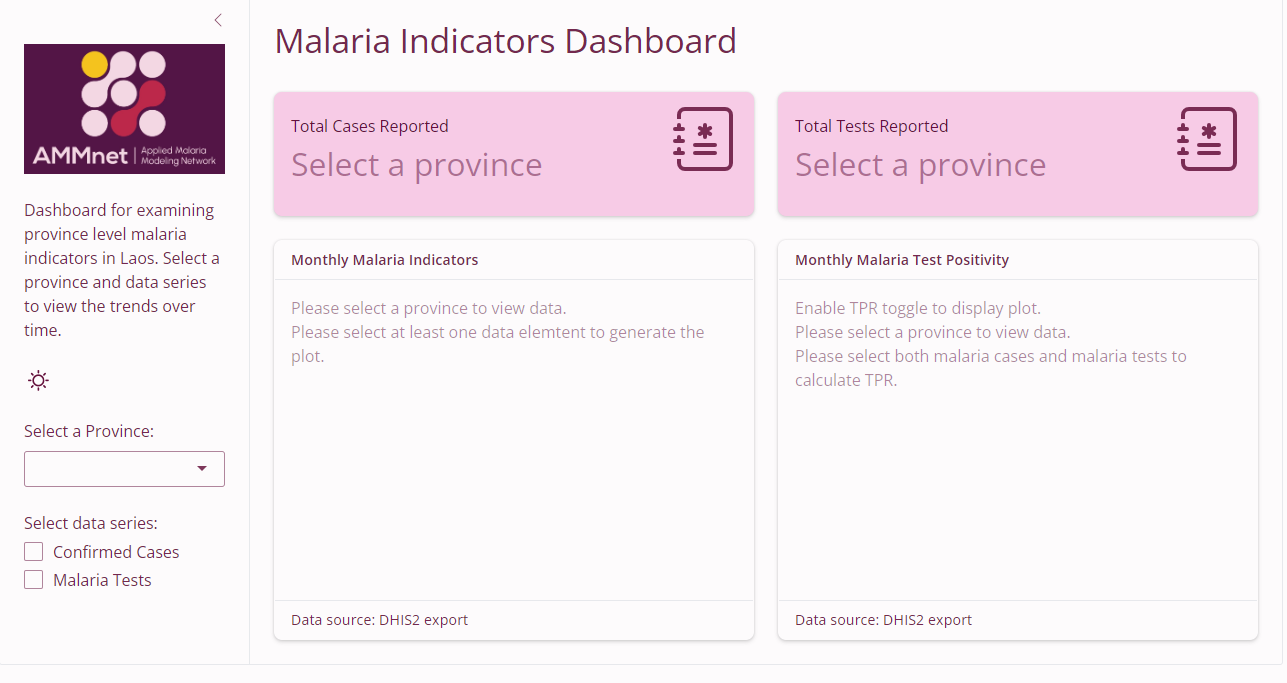

Once a user safely selects all of the inputs a plot will generate.

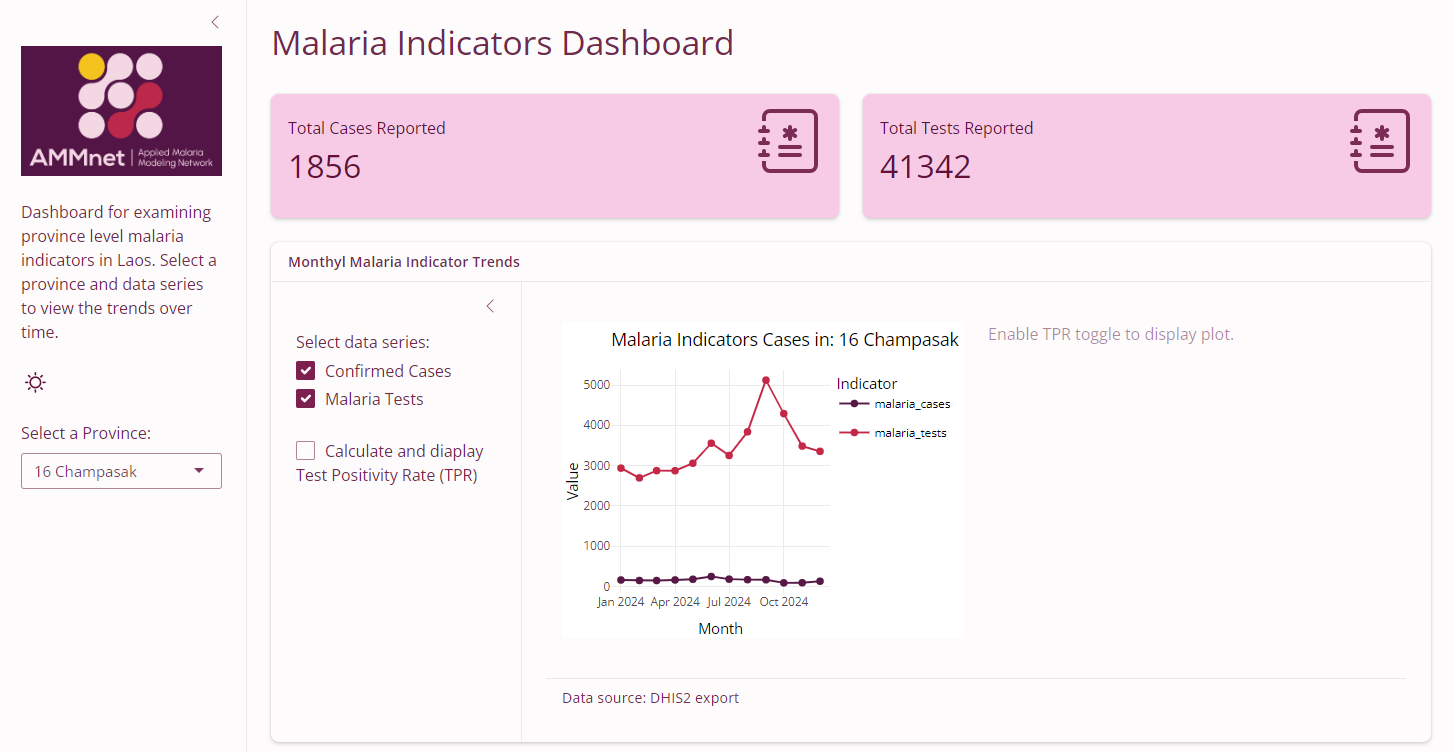

validate() + need() provide friendly user-facing error messages inside the plot container.
Only once all conditions are met, the plot is rendered.
This is much more user-friendly than simply leaving the plot blank or throwing errors!

Exrecise 12

Now let’s reinforce your learning with a short coding challenge:

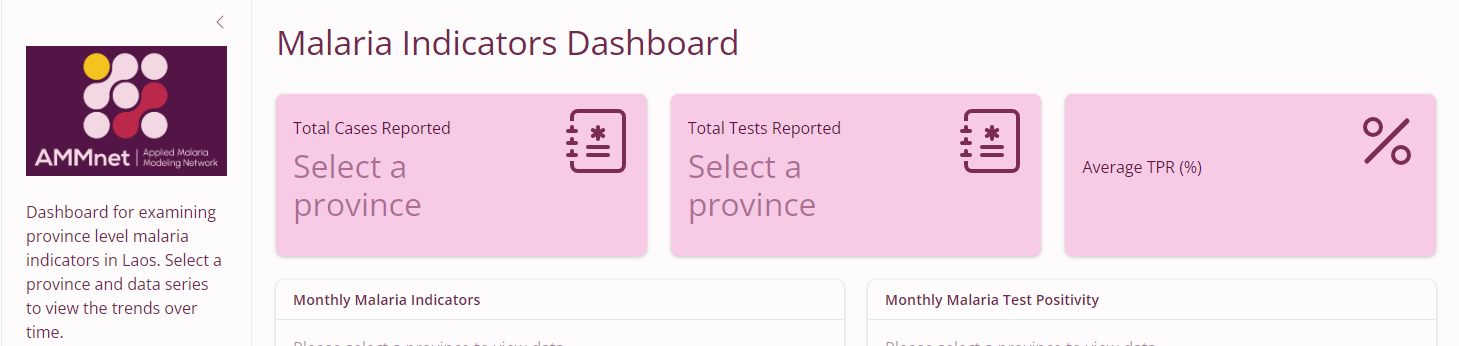

Create a new value box that displays the average TPR for the year, but only when the checkbox include_tpr is turned on.

Your logic should:

Calculate the TPR inside the server (same as you did for the other value boxes) but use sumarise(tpr = mean(tpr, na.rm = TRUE) to take the average value.
Conditionally display the value box only when the checkbox include_tpr is TRUE
Keep using province_data() for your data filtering
You can use renderUI() to conditionally create the value box.

Show Solution

Compute average TPR: Add this to your server():

  #-average TPR value box-----------------------------------------------------------------
  output$tpr_value <- renderText({

    req(input$include_tpr) # requires the TPR check to be TRUE

    # data processing
    df <-
      province_data() %>% # filters to province
      pivot_wider(names_from = var_name, values_from = value) %>% #widens data frame to have a column per indicator
      mutate(
        tpr = round((malaria_cases / malaria_tests) * 100, 2) # calculates TPR as a percentage
      ) %>%
      summarise(
        tpr = mean(tpr, na.rm=TRUE) # takes average of TPR on % scale
        )

    avg_tpr <- round(df$tpr, 1) # rounds to one decimal place

    avg_tpr # returns value
  })

Update UI code to include

layout_column_wrap(
      value_box(
        title = "Total Cases Reported",
        value =  textOutput("total_cases_box"), # reactive value taken from server side outputs
        showcase = bsicons::bs_icon("journal-medical"),
        showcase_layout = "top right",
        theme = "secondary" # app theme colour secondary
      ),

      value_box(
        title = "Total Tests Reported",
        value = textOutput("total_tests_box"), #render output call
        showcase = bsicons::bs_icon("journal-medical"), # update icon
        showcase_layout = "top right",
        theme = "secondary" #app theme colour secondary
      ),
      #conditional value box for TPR
      uiOutput("tpr_value_box") # this is a reactive value box that will only show if the TPR checkbox is selected
      )

Tell the server what to place in “tpr_value”

#-Render the value box for TPR if checkbox is selected---------------------------------------------
output$tpr_value_box <- renderUI({
  # Check if the TPR checkbox is selected
  if (isTRUE(input$include_tpr))  { # requires TPR check to be active

    # standard value box set up
    value_box(
      title = "Average TPR (%)",       # Title
      value = textOutput("tpr_value"), # using condiditional value
      showcase = bsicons::bs_icon("percent"), #Icon
      showcase_layout = "top right",   # placement
      theme = "secondary"              # colour theme
    )
  } else {
    NULL # if not checked then nothing is displayed
  }
})

You may notice here that our app has a blank space where the Test Positivity values are expected to be which doesn’t look very professional.

To prevent the empty placeholder space when the toggle is off, we can dynamically generate the entire set of value boxes using renderUI().

Instead of placing uiOutput("tpr_value_box") inside your existing layout_column_wrap(), we will let the server fully control which value boxes appear at any moment.

First we replace the current ui code for our value boxes with the following:

# Value Boxes in a single row that wraps responsive to screen size and data selection
uiOutput("value_boxes")

Then link the value_boxes to a server side output:

#-Value Box dynamic number based on TPR toggle-----------------------------------------------------
output$value_boxes <- renderUI({

  # Always include these two
  boxes <- list(
    value_box(
      title = "Total Cases Reported",
      value = textOutput("total_cases_box"),
      showcase = bsicons::bs_icon("journal-medical"),
      showcase_layout = "top right",
      theme = "secondary"
    ),
    value_box(
      title = "Total Tests Reported",
      value = textOutput("total_tests_box"),
      showcase = bsicons::bs_icon("journal-medical"),
      showcase_layout = "top right",
      theme = "secondary"
    )
  )

  # Conditionally add TPR box only if checkbox is ON
  if (isTRUE(input$include_tpr)) {
    boxes <- append(boxes, list(
      value_box(
        title = "Average TPR (%)",
        value = textOutput("tpr_value"),
        showcase = bsicons::bs_icon("percent"),
        showcase_layout = "top right",
        theme = "secondary"
      )
    ))
  }

  # Wrap all boxes inside layout_column_wrap
  layout_column_wrap(!!!boxes)
})

The !!! operator (from rlang) safely unpacks the list into multiple arguments for layout_column_wrap(). This allows us to dynamically build the list of value boxes.

Now your app will only show the TPR value box when appropriate — without leaving any empty space when the toggle is off!

renderUI() gives you full control over when and how UI elements appear.
You avoid “empty shells” by only adding UI objects when their underlying data exists.
The user experience is cleaner, avoids confusion, and reflects the actual available information.

Input Selection Within Cards

Having the data series selection buttons in the sidebar when they control all of the plots on the dashbaord is okay but if we want to add addiditional plots a long list of selection boxes may be confusing for the user.

What we can do is build a card with a sidebar for selections directly within that card.

For the current plots of reported cases and tests and calculated TPR, lets create a single card with a sidebar within that card that directs the user for what data to select to display plots.

Replace our current two card() layout with the following:

# Card with a sidebar for input selection
    card(
      height = 500,
      full_screen = TRUE,
      # global card header
      card_header("Monthyl Malaria Indicator Trends"),
      # sidebar layout with sidebar and card body
      layout_sidebar(

        # add the sidebar with input elements
        sidebar = list(
          # include original data series checkboes
          checkboxGroupInput(
            inputId  = "series_select",
            label    = "Select data series:",
            choices  = c(
              "Confirmed Cases" = "malaria_cases",
              "Malaria Tests"   = "malaria_tests"
            )
          ),
          # condiditionally render TPR checkbox
          uiOutput("tpr_checkbox_ui")
        ),

        # include the card body with the plots
        card_body(
          # wrap the calls into a column layout
          layout_column_wrap(
            plotlyOutput("ts_plot"),
            plotlyOutput("tpr_plot")
          )
        ),
        card_footer("Data source: DHIS2 export") # informative card footer
      )
    )

And REMOVE the data series selection and TPR selection from the sidebar code - keep it only in our new card.

This functionality would be nicer if first plot could take up the full width of the card when the TPR box is not checked - we can acheive this by making the following changes:

Instead of hard-coding the layout inside card_body() we can replace it with a dynamic UI placeholder:

   # Card with a sidebar for input selection
    card(
      full_screen = TRUE,
      # global card header
      card_header("Monthyl Malaria Indicator Trends"),
      # sidebar layout with sidebar and card body
      layout_sidebar(

        # add the sidebar with input elements
        sidebar = list(
          # include original data series checkboes
          checkboxGroupInput(
            inputId  = "series_select",
            label    = "Select data series:",
            choices  = c(
              "Confirmed Cases" = "malaria_cases",
              "Malaria Tests"   = "malaria_tests"
            )
          ),
          # condiditionally render TPR checkbox
          uiOutput("tpr_checkbox_ui")
        ),

        # include the card body with the plots
        card_body(
          # UI output that will dynamically render different layout
          uiOutput("ts_plots_ui")
        ),
        card_footer("Data source: DHIS2 export") # informative card footer
      )
    )

And then we can update the server code to conditionally layout the plots based on whether the TPR checkbox is selected or not:

#-conditional layout for time series plots---------------------------------------------
output$ts_plots_ui <- renderUI({

  # If TPR is selected, show both plots side by side
  if (isTRUE(input$include_tpr)) {
    # Show both plots side by side
    layout_columns(
      col_widths = c(6, 6),  # 50-50 width
      plotlyOutput("ts_plot"),
      plotlyOutput("tpr_plot")
    )

  # If TPR is not selected, show only the main time series plot
  } else {
    # Show single plot full width
    layout_columns(
      col_widths = c(12),  # full width
      plotlyOutput("ts_plot")
    )
  }

})

User Experience

At this staage we have learnt some great skills on building Shiny dashboards but now is a good time to take a step back and this about our end-user who we are designing this application for - a really key part of building a good dashboard.

Let’s take a step back and evolve the app to reflect a more realistic reporting structure often seen in Ministry of Health surveillance dashboards.

Why make this change?

Many surveillance dashboards begin at the national level, providing a quick high-level summary of the country’s malaria indicators.
The user can then drill down into province-specific trends when needed.
This allows stakeholders to get both a big-picture view and explore granular data.

We’ll evolve our app to allow:

Default view = National summary (all provinces combined)
User can toggle between National or Province level using a radio button
If Province is selected, a dropdown appears allowing the user to pick a Province.
All plots, value boxes, and outputs automatically adjust based on this selection.

Let’s first update the sidebar UI to allow the user to select the reporting level, update our description and .

Update your sidebar = sidebar() with:

#-sidebar---------
sidebar = sidebar(

  # add a logo
  tags$img(src = "AMMnet-logo.png"),

  # informative description
  p("Dashboard for examining malaria indicators at national and province levels in Laos.
     Select reporting level and indicators to view trends over time."),

  # add dark/light switch
  input_dark_mode(mode = "light"),

  # Reporting Level selection - National or Province
  radioButtons(
    inputId = "reporting_level", # ID for crosstalk in the app
    label = "Select reporting level:", # Titlefor user side
    choices = c("National", "Province"), # Options of selection
    selected = "National"  # Default to National on app launch
  ),

  # Conditionally render Province dropdown only if Province level is selected
  uiOutput("province_selector")

)

Note

The uiOutput("province_selector") creates a placeholder — we’ll dynamically insert the Province dropdown only when Province is selected.

Next, we need to add the logic to conditionally display the Province dropdown based on the selected reporting level. Add this to the top of your server() function:

#- Dynamically show province selection if Province level is selected ----------------------------
output$province_selector <- renderUI({

  # Check if the reporting level is set to Province
  if (input$reporting_level == "Province") {
    # Create a dropdown for province selection
    selectInput(
      inputId = "province_select", # ID for the province selection,
      label = "Select a Province:",# UI side title
      choices = c("", sort(unique(app_data$organisation_unit))), # empty first value followed by all of our unique org_unit names
      selected = "" # default value that the application starts with as selected - in our case we want this to be blank.
    )
  } else {
    NULL # If National level is selected, return NULL to not display the dropdown
  }
})

This ensures the Province dropdown only appears when appropriate. We’re giving users a cleaner, more intuitive interface!

Now we need to adjust our reactive data filter to reflect both National and Province level selections.

Replace your existing province_data() reactive with this:

#-Reactive data filter: adjust for national or province selection---------
  filtered_data <- reactive({

    # If Province is selected, ensure province dropdown has a selection
    if (input$reporting_level == "Province") {
      req(input$province_select != "")
      app_data %>% filter(organisation_unit == input$province_select)
    } else {
      # If National, use full dataset and sum over all provinces
      app_data %>%
        group_by(period, var_name) %>% # group by period and variable name
        summarise(value = sum(value, na.rm = TRUE), .groups = "drop") # sum values over all provinces

    }
  })

Now replace all server-side value box calculations to use filtered_data() instead of province_data(), add a condidtional statement to only show our validate() messages when the dashboard is in “Province” level view and make sure the numerical values are formatted nicely.

  #-Compute total cases from filtered data-----------------------
  output$total_cases_box <- renderText({

    # Only validate if Province level is selected
    if (input$reporting_level == "Province") {
      validate(
        need(input$province_select != "", "Select a province")
      )
    }

     df <- filtered_data() # this act like a function and pulls through our filtered data to an object inside renderText called 'df'

    total_cases <- df %>%
      filter(var_name == "malaria_cases") %>% # filters to malaria cases data only
      summarise(total = sum(value, na.rm = TRUE)) %>% # sums values over all periods included
      pull(total) # pulls out the value from summary calculation into named vector

    # Apply formatting here
    scales::comma(total_cases) # final value with nice formatting
  })

  #-Compute total tests from filtered data-------------------------
  output$total_tests_box <- renderText({

    # Only validate if Province level is selected
    if (input$reporting_level == "Province") {
      validate(
        need(input$province_select != "", "Select a province")
      )
    }

    df <- filtered_data() # pull filtered data

    total_tests <- df %>%
      filter(var_name == "malaria_tests") %>%
      summarise(total = sum(value, na.rm = TRUE)) %>% #sum total tesats
      pull(total)

    scales::comma(total_tests) # final value with nice formatting

  })

  #-average TPR value box--------------------------------------------
  output$tpr_value <- renderText({

    req(input$include_tpr) # requires the TPR check to be TRUE

    # data processing
    df <-
      filtered_data() %>% # pull filtered data
      pivot_wider(names_from = var_name, values_from = value) %>% #widens data frame to have a column per indicator
      mutate(
        tpr = round((malaria_cases / malaria_tests) * 100, 2) # calculates TPR as a percentage
      ) %>%
      summarise(
        tpr = mean(tpr, na.rm=TRUE) # takes average of TPR on % scale
      )

    avg_tpr <- round(df$tpr, 1) # rounds to one decimal place

    avg_tpr # returns value
  })

And update the call to value_box() so that now our data will always be displayed with numeric comma style presentation for easier reading.

#-Value Box dynamic number based on TPR toggle-----------------------------------------------------
  output$value_boxes <- renderUI({

    # Always include these two
    boxes <- list(
      value_box(
        title = "Total Cases Reported",
        value = textOutput(scales::comma("total_cases_box")), # use scales::comma to format the number with commas
        showcase = bsicons::bs_icon("journal-medical"),
        showcase_layout = "top right",
        theme = "secondary"
      ),
      value_box(
        title = "Total Tests Reported",
        value = textOutput(scales::comma("total_tests_box")), # use scales::comma to format the number with commas
        showcase = bsicons::bs_icon("journal-medical"),
        showcase_layout = "top right",
        theme = "secondary"
      )
    )

    # Conditionally add TPR box only if checkbox is ON
    if (isTRUE(input$include_tpr)) {
      boxes <- append(boxes, list(
        value_box(
          title = "Average TPR (%)",
          value = textOutput(scales::comma("tpr_value")), # use scales::comma to format the number with commas
          showcase = bsicons::bs_icon("percent"),
          showcase_layout = "top right",
          theme = "secondary"
        )
      ))
    }

    # Wrap all boxes inside layout_column_wrap
    layout_column_wrap(!!!boxes)
  })

Update the plotting code to also use filtered_data() instead of province_data(), add a condidtional statement to only show our validate() messages when the dashboard is in “Province” level view and update the title text to be informative at the National level.

#-PLOTS------------------------------------------------------------------------------------------------------

  #-Plot of reported values over time selected by province----------------------
  output$ts_plot <- renderPlotly({

    # only validate if Province level is selected
    if (input$reporting_level == "Province") {
      # condiditional messaging -  Check if province selection is made and if not display the following message
      # Check if data selected and prompt to select data series
      validate(
        need(input$province_select != "", "Please select a province to view data."),
        need(length(input$series_select) > 0, "Please select at least one data elemtent to generate the plot.")
      )
    }

    # title value
    title_val =
      ifelse(input$reporting_level == "Province",
             paste("Malaria Indicators in:", input$province_select),
             "Malaria Indicators at National Level")


    df <-
      filtered_data()  %>%  # get province data
      filter(var_name %in% input$series_select) # Get the filtered data as per input

      req(nrow(df) > 0)              # Ensure there are rows to plot

      # Create a ggplot time series of time on the xaxis cases on the y, colour by data type
      p <-
        ggplot(df, aes(x = period, y = value, col=var_name)) +
        geom_line() +  #add line style
        geom_point() + # add points to the line
        labs(
          title = title_val,
          x = "Month",
          y = "Value",
          col="Indicator"
        ) +
        scale_color_manual(values = c("malaria_cases" = "#571845", "malaria_tests" = "#C42847"))+ # set the colour values
        theme_minimal()

      # Convert ggplot to interactive Plotly object
      ggplotly(p)

    })



  #-Conditional rendering of TPR plot-------------------------------------------
  output$tpr_plot <- renderPlotly({

    # validate if Province level is selected
    if (input$reporting_level == "Province") {
      # condiditional messaging -  Check if province selection is made and if not display the following message
      # Check if data selected and prompt to select data series
      validate(
        need(input$province_select != "", "Please select a province to view data."),
        need(input$include_tpr, "Enable TPR toggle to display plot."),
        need(length(input$series_select) == 2, "Please select both malaria cases and malaria tests to calculate TPR.")
      )
    }

    # Validate for national level
    # Use validate + need to provide informative user messages
    validate(
      need(input$include_tpr, "Enable TPR toggle to display plot."),
      need(length(input$series_select) == 2, "Please select both malaria cases and malaria tests to calculate TPR.")
    )

    # title value
    title_val =
      ifelse(input$reporting_level == "Province",
             paste("Test Positivity Rate (TPR) in:", input$province_select),
             "Test Positivity Rate (TPR) at National Level")

    # calculate TPR - Test Positivity Rate
    df <-
      filtered_data() %>% # get the filtered province data
      pivot_wider(names_from = var_name, values_from = value) %>% # pivot the data wider to have cases and tests in separate columns
      arrange(period) %>% # arrange by period
      mutate(
        tpr = round((malaria_cases / malaria_tests) * 100, 2) # calculate TPR as a percentage - rounded to 2 decimal places
      )

    # Plot the TPR over time
    p <-
      ggplot(df, aes(x = period, y = tpr)) +
      geom_point(color = "#FECC01") +
      labs(
        title =  title_val,
        x = "Month",
        y = "TPR (%)"
      ) +
      theme_minimal() +
      scale_y_continuous(limits = c(0, 100)) # set y-axis limits from 0 to 100%

    ggplotly(p) # convert ggplot to plotly object

  })

And in the ui() lets reset our default selection of plot variables to set the default to fill the plot first with case data

# Card with a sidebar for input selection
    card(
      full_screen = TRUE,
      # global card header
      card_header("Monthyl Malaria Indicator Trends"),
      # sidebar layout with sidebar and card body
      layout_sidebar(

        # add the sidebar with input elements
        sidebar = list(
          # include original data series checkboes
          checkboxGroupInput(
            inputId  = "series_select",
            label    = "Select data series:",
            choices  = c(
              "Confirmed Cases" = "malaria_cases",
              "Malaria Tests"   = "malaria_tests"
            ),
            selected = "malaria_cases" # set the default to cases
          ),
          # condiditionally render TPR checkbox
          uiOutput("tpr_checkbox_ui")
        ),

        # include the card body with the plots
        card_body(
          # UI output that will dynamically render different layout
          uiOutput("ts_plots_ui")
        ),
        card_footer("Data source: DHIS2 export") # informative card footer
      )
    )

Stretch Exercise

🎯 Your Task - add a new card panel below the current plots showing a time series plot of incidence per 1,000 people. Beacuse the dataset does not contain population data we cannot calculate the national level monthly incidence so we will display monthly data for each province as a single line to see the range across the country.

This plot will:

Use data where var_name == "malaria_cases_per_1000"
Show a single line plot with one point per month for each province coloured by province
Appear in a new card() component with a header and footer
Appears by default when National level is selected but displays Province selection message if Province level selected.
Use renderPlotly() to make it interactive

Show Solution

Add a new card to the UI

# incidence plot card
    card(
      height = 500,
      full_screen = TRUE,
      card_header("Monthyl Malaria Incidence Trends"), # card header
      card_body(plotlyOutput("inc_plot")),     # plotly output for the incidence plot
      card_footer("Data source: DHIS2 export") # informative card footer
    )

Add plot code to the server

  #-Incidence plot----------------------------------------------------------------
  output$inc_plot <- renderPlotly({

  # Add messages to inform user to select a province
  if (input$reporting_level == "Province") {
    validate(
      need(input$province_select != "", "Please select a province to view data.")
      )
  }

  # filter dataset if province level otherwise use the full dataset
  if(input$reporting_level == "Province"){
    df <-
      filtered_data() %>% # filtr province data
      filter(var_name == "malaria_cases_per_1000") # select inc var

  }else{
    df <- app_data %>%
      filter(var_name == "malaria_cases_per_1000") # select inc var
  }


  # title value
  title_val =
    ifelse(input$reporting_level == "Province",
           paste("Malaria Incidence in:", input$province_select),
           "Malaria Incidence at National Level")

  # Plot the incidence over time
  p <-
    ggplot(df, aes(x = period, y = value, col=organisation_unit)) +
    geom_line( ) +
    geom_point( ) +
    labs(
      title = title_val,
      x = "Month",
      y = "Incidence (per 1,000)"
    ) +
    theme_minimal()

  ggplotly(p)

})

Including Leaflet Maps

Now that your dashboard includes time series and summary statistics, let’s add a spatial view using an interactive map. This will help users visually explore malaria burden across the country.

We’ll use the {leaflet} package to create a map of average annual incidence per 1,000 people, and when our dashboard is in Province view we’ll highlight the selected province from the sidebar dropdown.

Think of leaflet as allowing us to use a google maps style map to our dashboard rather than a static image.

We will build an interactive leaflet map that:

Fills each province with a color based on average annual incidence
Adds a legend for the color scale
Highlights the selected province with a bold outline
Shows tooltips when hovering over provinces

For plotting maps we need to ensure we have a shapefile at the correct administrative boundary - download the file and add it to your data-outputs folder.

Download data-outputs.zip

At the top of your app (after loading your libraries and data), add:

adm1_shp <- st_read("./data-outputs/adm1_shapefile.shp")

Add a layout_columns() and an extra card to ensure the map and the incidence plot fall on the same row of the dashboard and adjust the widths to allow more space for the line plot.

# incidence plot card - including map
    layout_columns(
      # width - adjust the width to give some more space to the line chart
      col_widths = c(7,5),
      card(
        height = 400,
        full_screen = TRUE,
        card_header("Monthly Malaria Incidence Trends"),
        card_body(plotlyOutput("inc_plot", height = "400px")),
        card_footer("Data source: DHIS2 export")
      ),
      card(
        height = 400,
        full_screen = TRUE,
        card_header("Average Annual Incidence Map"),
        card_body(leafletOutput("inc_map", height = "400px")),
        card_footer("Data source: HumData for shape files, DHIS2 for malaria data")
      )
    )

Now buid the Maps using Leaflet Syntax in the server. This is slightly different syntax to plotting using ggplot2 and each arguement is described below.

# Incidence leaflet map----------------------------------------------------------------------
output$inc_map <- renderLeaflet({

  # Summarise incidence by province - no need to use filtered data as
  # we want all provinces shown on the map
  df <-
    app_data %>%
    filter(var_name == "malaria_cases_per_1000") %>% # filter to incidence data
    group_by(organisation_unit) %>%  # group by organisation unit
    summarise(inc = mean(value, na.rm = TRUE)) # calculate mean incidence per 1,000

  # Join data to spatial file
  df_shape <- left_join(adm1_shp, df, by = c("org_unit" = "organisation_unit"))

  # Create color palette
  pal <- colorNumeric(
    palette = "YlOrRd",    # yellow orange red scale
    domain = df_shape$inc, # use the incidence values for color mapping
    na.color = "#f0f0f0"   # set the NA value colour
  )

  # Determine which province (if any) is selected to highlight
  selected_province <- if (input$reporting_level == "Province" && input$province_select != "") {
    input$province_select
  } else {
    "national"
  }

  # Create the leaflet map
  leaflet(df_shape) %>% # use the spatial data
    addProviderTiles(providers$CartoDB.Positron) %>% # adds base map layer
    addPolygons(
      # add polygons for each province
      fillColor = ~pal(inc), # fill color based on incidence
      weight = ~ifelse(org_unit == selected_province, 3, 1), # highlight selected province with thicker border
      color = ~ifelse(org_unit == selected_province, "#7C204F", "black"), # set border color
      opacity = 1, # set opacity of the border
      fillOpacity = 0.8, # set fill opacity
      label = ~paste0(org_unit, ": ", round(inc, 1), " per 1,000"), # add labels with province name and incidence
      highlightOptions = highlightOptions(
        # highlight options for interactivity
        weight = 3, # thicker border on hover
        color = "#333", # darker border on hover
        fillOpacity = 0.9, # fill opacity on hover
        bringToFront = TRUE # bring polygon to front on hover
      )
    ) |>
    # Add the color legend
    addLegend(
      pal = pal,
      values = df_shape$inc,
      title = "Avg Incidence (per 1,000)",
      position = "bottomright"
    )
})

In the current app, your leaflet() map uses: addProviderTiles(providers$CartoDB.Positron)

This adds a light, minimal background map. But what if you wanted to give users a different map style?

Exercise 13

Explore other available background tiles using the leaflet::providers object. You can see a full list by running this command in your R console: leaflet::providers Replace CartoDB.Positron with or another of your choice. Hint: You only need to replace the argument to addProviderTiles(). For example: addProviderTiles(providers$Esri.WorldImagery)
1. Set the column widths to a new value so that the first incidnece plot takes up more of the row space than the map.

Adding a Table Output

In many dashboards, tables complement visualizations by providing users with detailed numeric outputs.

Shiny has great support for interactive tables using the DT package.

Let’s create a summary table that:

Aggregates total cases, total tests, average TPR and average incidence by province over the year and includes the number of months that data is reported for in the province
Highlights the currently selected province if province level display is selected
Displays all provinces at once
Is interactive (sortable, searchable, paginated)

We will use renderDT() inside the server and DTOutput() inside the UI to create this table.

# DT output
    card(
      card_header("Summary Table"), # card header
      card_body(DTOutput("summary_data")), # DT output
      card_footer("Aggregated Annual Values") # card footer
    )

Now add this code inside your server:

#-Summary table of annual values-------------------------------------------------------------
output$summary_data <- renderDT({

  # Filter and summarise the app_data to create a summary table using all provinces
  df <-
    app_data %>%
    # Filter to relevant variables
    filter(var_name %in% c("malaria_cases", "malaria_tests", "malaria_cases_per_1000")) %>%
    # Pivot the data to wide format
    pivot_wider(
      names_from = var_name,
      values_from = value,
    ) %>%
    # Group by organisation unit (province)
    group_by(organisation_unit) %>%
    # Calculate TPR and summarise the data
    mutate(tpr = round((malaria_cases / malaria_tests) * 100, 1)) %>%
    # Summarise the data to get total cases, total tests, average TPR, and average incidence
    # And two new variables - reporting months for cases and tests
    summarise(
      total_cases = sum(malaria_cases, na.rm = TRUE),
      total_tests = sum(malaria_tests, na.rm=TRUE),
      avg_tpr = round(mean(tpr, na.rm=TRUE), 1),
      avg_inc = round(mean(malaria_cases_per_1000, na.rm=TRUE),1),
      reporting_months_cases = sum(!is.na(malaria_cases)),
      reporting_months_tests = sum(!is.na(malaria_tests))
    ) %>%
    # Rename columns for nice table headings
    rename(
      Province = organisation_unit,
      `Total Cases` = total_cases,
      `Total Tests` = total_tests,
      `Average TPR (%)` = avg_tpr,
      `Avg Incidence` = avg_inc,
      `Case Reporting Months` = reporting_months_cases,
      `Test Reporting Months` = reporting_months_tests
    )

  # Build DT object
  dt <- datatable(
    df, # Create a datatable from the summarised data
    rownames = FALSE,  # disable row names
    options = list(
      pageLength = 10, # number of rows per page
      dom = "tip",     # table controls
      autoWidth = TRUE # auto width for columns
    )
  )

  # Highlight selected province
  if (input$reporting_level == "Province" && input$province_select != "") {
    # Apply row styling to highlight the selected province
    selected <- input$province_select
    # Use formatStyle to apply bold font weight to the selected province row
    dt <- dt %>%
      formatStyle(
        "Province",
        target = "row",
        fontWeight = styleEqual(selected, "bold")
      )
  }

  # Return the datatable object
  dt
})

When you run your app, you now have a sortable, searchable summary table with all provinces. The currently selected province row is bolded too.

Exercise 14 - Tricky

Users may want to export the summary data to analyze offline, share with colleagues, or integrate into reports. Your Task: Add a Download CSV button that allows users to download the table displayed above.

Hints:

In your UI, use downloadButton() to add a button to the card.
In your server, create a downloadHandler() to generate the CSV file.
You can put the button inside the same card as your table, e.g., just above DTOutput().
For downloading logic first check out the downloadHandler function logic through typing ?downloadHandler in the Console and check with the example below.

Show Solution

Add the following to your UI

# DT output
    card(
      card_header("Summary Table"), # card header
      card_body(
        downloadButton("download_summary", "Download CSV"), # download button
        DTOutput("summary_data") # DT output
        ),
      card_footer("Aggregated Annual Values per Province") # card footer
    )

And the following to the server:

#-Code for handling data downloads--------------------------------------------------------------

# Create a reactive data frame for the summary table to pull data from same logic as in the
# data rendering code
summary_table_data <- reactive({
  app_data |>
    filter(var_name %in% c("malaria_cases", "malaria_tests", "malaria_cases_per_1000")) |>
    pivot_wider(names_from = var_name, values_from = value) |>
    group_by(organisation_unit) |>
    mutate(tpr = round((malaria_cases / malaria_tests) * 100, 2)) |>
    summarise(
      total_cases = sum(malaria_cases, na.rm = TRUE),
      total_tests = sum(malaria_tests, na.rm=TRUE),
      avg_tpr = round(mean(tpr, na.rm=TRUE), 1),
      avg_inc = round(mean(malaria_cases_per_1000, na.rm=TRUE),1),
      reporting_months_cases = sum(!is.na(malaria_cases)),
      reporting_months_tests = sum(!is.na(malaria_tests))
    ) |>
    rename(
      Province = organisation_unit,
      `Total Cases` = total_cases,
      `Total Tests` = total_tests,
      `Average TPR (%)` = avg_tpr,
      `Avg Incidence` = avg_inc,
      `Case Reporting Months` = reporting_months_cases,
      `Test Reporting Months` = reporting_months_tests
    )
})


# Enable file download
output$download_summary <- downloadHandler(
  # Define the filename for the downloaded file
  filename = function() { paste0("summary_data_", Sys.Date(), ".csv") }, # This will create a file name with the current date

  # Define the content of the file
  content = function(file) {
    write.csv(summary_table_data(), file, row.names = FALSE) # Write the summary table data to a CSV file
  }
)

Wrapping Up

By the end of this tutorial you have successfully built a fully functional malaria data dashboard in Shiny that allows you to:

Select a spatial scale and filter/ process data interactively
Compute derived indicators (such as Test Positivity Rate) directly within the app
Display multiple types of outputs:
- Value boxes for summary statistics
- Time series plots
- Maps using Leaflet
- Summary tables with download options
Apply conditional UI elements that only appear when appropriate inputs are selected
Style your app using bslib themes and branding elements such as logos, custom colors, and light/dark mode
Build dynamic layouts using layout_sidebar(), cards(), value_box(), layout_columns(), and renderUI()
Control user experience through validation messages, prompts, and clean error handling
Export data using downloadHandler()

Throughout this process you have seen how Shiny allows you to link user inputs to real-time updates in your outputs, building fully reactive dashboards that allow end-users to explore and analyse data without needing to modify code directly.

The skills you have developed through this workshop form the foundation for building interactive data dashboards that can support decision-making across a range of public health, program management, or analytic tasks.

Important

There are so of course so many elements we could build into our dashboards and figures that are useful ways to present our data. Here are some examples but can you thik of any more:

If we have addiditional years of data adding time based filtering inputs
An addiditonal tab used to compare locations or time periods
Ability to select a location based on a map input

…

Full App.R code for our Demo Dashboard

See below for the full app.R script that creates the dashboard we have built in this workshop.

#-Load libraries----------------------------------------------------------------
library(shiny)
library(bslib)
library(tidyverse)
library(DT)
library(plotly)
library(leaflet)
library(sf)
library(lubridate)
library(bsicons)
library(scales)

#-read in app data once on app start up-----------------------------------------
app_data <-
  read.csv("./data-outputs/data_dhis2_laos_ammnet_cleaned.csv")

# re-classify period as a date
app_data$period <- lubridate::as_date(app_data$period)

#-Read in the shapefile for the provinces---------------------------------------
adm1_shp <- st_read("./data-outputs/adm1_shapefile.shp")

#-Define UI for application - User Interface------------------------------------
ui <- page_fluid(

  #-layout------------------------
  layout_sidebar(

    #-sidebar---------
    sidebar = sidebar(

      # add a logo
      tags$img(src = "AMMnet-logo.png"),

      # informative description
      p("Dashboard for examining malaria indicators at national and province levels in Laos.
     Select reporting level and indicators to view trends over time."),

      # add dark/light switch
      input_dark_mode(mode = "light"),

      # Reporting Level selection - National or Province
      radioButtons(
        inputId = "reporting_level",
        label = "Select reporting level:",
        choices = c("National", "Province"),
        selected = "National"  # Default to National on app launch
      ),

      # Conditionally render Province dropdown only if Province level is selected
      uiOutput("province_selector")

    ),

    #-main pannel content----
    h1("Malaria Indicators Dashboard"), # Main title of the app

    # Value Boxes in a single row that wraps responsive to screen size and data selection
    uiOutput("value_boxes"),

    # Card with a sidebar for input selection
    card(
      full_screen = TRUE,
      # global card header
      card_header("Monthyl Malaria Indicator Trends"),
      # sidebar layout with sidebar and card body
      layout_sidebar(

        # add the sidebar with input elements
        sidebar = list(
          # include original data series checkboes
          checkboxGroupInput(
            inputId  = "series_select",
            label    = "Select data series:",
            choices  = c(
              "Confirmed Cases" = "malaria_cases",
              "Malaria Tests"   = "malaria_tests"
            ),
            selected = "malaria_cases"
          ),
          # condiditionally render TPR checkbox
          uiOutput("tpr_checkbox_ui")
        ),

        # include the card body with the plots
        card_body(
          # UI output that will dynamically render different layout
          uiOutput("ts_plots_ui")
        ),
        card_footer("Data source: DHIS2 export") # informative card footer
      )
    ),

    # incidence plot card - including map
    layout_columns(
      # width - adjust the width to give some more space to the line chart
      col_widths = c(7,5),
      card(
        height = 500,
        full_screen = TRUE,
        card_header("Monthly Malaria Incidence Trends"),
        card_body(plotlyOutput("inc_plot", height = "350px")),
        card_footer("Data source: DHIS2 export")
      ),
      card(
        full_screen = TRUE,
        card_header("Average Annual Incidence Map"),
        card_body(leafletOutput("inc_map", height = "350px")),
        card_footer("Data source: HumData for shape files, DHIS2 for malaria data")
      )
    ),

    # DT output
    card(
      card_header("Summary Table"), # card header
      card_body(
        downloadButton("download_summary", "Download CSV"), # download button
        DTOutput("summary_data") # DT output
        ),
      card_footer("Aggregated Annual Values per Province") # card footer
    )
  ),

  # <<< NEW >>> Defining the theme of your app
  theme = bs_theme(
    version = 5,
    fg = "rgb(100, 16, 59)",   # set the foreground colour
    bg = "rgb(253, 251, 252)", # set the background colour
    primary = "#7C204F",       # set the primary colour
    secondary = "#F7CBE6"      # set the secondary colour
  )

)


#-Define server logic - Computations------------------------------------------------------------------
server <- function(input, output) {

   # bs_themer()

  #-DATA---------------------------------------------------------------------------------------------
  #-Reactive data filter: adjust for national or province selection------
  filtered_data <- reactive({

    # If Province is selected, ensure province dropdown has a selection
    if (input$reporting_level == "Province") {
      req(input$province_select != "")
      app_data %>% filter(organisation_unit == input$province_select)
    } else {
      # If National, use full dataset and sum over all provinces
      app_data %>%
        group_by(period, var_name) %>% # group by period and variable name
        summarise(value = sum(value, na.rm = TRUE), .groups = "drop") # sum values over all provinces

    }
  })

  #-UI dynamics------------------------------------------------------------------------------------

  #-Dynamically show province selection if Province level is selected ----------
  output$province_selector <- renderUI({

    # Check if the reporting level is set to Province
    if (input$reporting_level == "Province") {
      # Create a dropdown for province selection
      selectInput(
        inputId = "province_select", # ID for the province selection,
        label = "Select a Province:",# UI side title
        choices = c("", sort(unique(app_data$organisation_unit))), # empty first value followed by all of our unique org_unit names
        selected = "" # default value that the application starts with as selected - in our case we want this to be blank.
      )
    } else {
      NULL # If National level is selected, return NULL to not display the dropdown
    }
  })

  #-Conditional UI element for TPR checkbox-------------------------------------
  output$tpr_checkbox_ui <- renderUI({

    if (all(c("malaria_cases", "malaria_tests") %in% input$series_select)) {
      # Only show the checkbox if both series are selected
      checkboxInput(
        inputId = "include_tpr", # name ID
        label = "Calculate and diaplay Test Positivity Rate (TPR)", # User side title
        value = FALSE # set to be unclicked as default
      )
    } else {
      # If not both series selected, return NULL to not display the checkbox
      NULL
    }
  })

  #-Render the value box for TPR if checkbox is selected------------------------
  output$tpr_value_box <- renderUI({
    # Check if the TPR checkbox is selected
    if (isTRUE(input$include_tpr))  { # requires TPR check to be active

      # standard value box set up
      value_box(
        title = "Average TPR (%)",       # Title
        value = textOutput("tpr_value"), # using condiditional value
        showcase = bsicons::bs_icon("percent"), #Icon
        showcase_layout = "top right",   # placement
        theme = "secondary"              # colour theme
      )
    } else {
      NULL # if not checked then nothing is displayed
    }
  })

  #-Value Box dynamic number based on TPR toggle--------------------------------
  output$value_boxes <- renderUI({

    # Always include these two
    boxes <- list(
      value_box(
        title = "Total Cases Reported",
        value = textOutput("total_cases_box"),
        showcase = bsicons::bs_icon("journal-medical"),
        showcase_layout = "top right",
        theme = "secondary"
      ),
      value_box(
        title = "Total Tests Reported",
        value = textOutput("total_tests_box"),
        showcase = bsicons::bs_icon("journal-medical"),
        showcase_layout = "top right",
        theme = "secondary"
      )
    )

    # Conditionally add TPR box only if checkbox is ON
    if (isTRUE(input$include_tpr)) {
      boxes <- append(boxes, list(
        value_box(
          title = "Average TPR (%)",
          value = textOutput("tpr_value"),
          showcase = bsicons::bs_icon("percent"),
          showcase_layout = "top right",
          theme = "secondary"
        )
      ))
    }

    # Wrap all boxes inside layout_column_wrap
    layout_column_wrap(!!!boxes)
  })

  #-conditional layout for time series plots------------------------------------
  output$ts_plots_ui <- renderUI({

    # If TPR is selected, show both plots side by side
    if (isTRUE(input$include_tpr)) {
      # Show both plots side by side
      layout_columns(
        col_widths = c(6, 6),  # 50-50 width
        plotlyOutput("ts_plot"),
        plotlyOutput("tpr_plot")
      )

      # If TPR is not selected, show only the main time series plot
    } else {
      # Show single plot full width
      layout_columns(
        col_widths = c(12),  # full width
        plotlyOutput("ts_plot")
      )
    }

  })


  #-VALUE BOXES DATA--------------------------------------------------------------------------------------
  #-Compute total cases from filtered data--------------------------------------
  output$total_cases_box <- renderText({

    # Only validate if Province level is selected
    if (input$reporting_level == "Province") {
      validate(
        need(input$province_select != "", "Select a province")
      )
    }

     df <- filtered_data() # this act like a function and pulls through our filtered data to an object inside renderText called 'df'

    total_cases <- df %>%
      filter(var_name == "malaria_cases") %>% # filters to malaria cases data only
      summarise(total = sum(value, na.rm = TRUE)) %>% # sums values over all periods included
      pull(total) # pulls out the value from summary calculation into named vector

    # Apply formatting here
    scales::comma(total_cases) # final value with nice formatting
  })

  #-Compute total tests from filtered data--------------------------------------
  output$total_tests_box <- renderText({

    # Only validate if Province level is selected
    if (input$reporting_level == "Province") {
      validate(
        need(input$province_select != "", "Select a province")
      )
    }

    df <- filtered_data() # pull filtered data

    total_tests <- df %>%
      filter(var_name == "malaria_tests") %>%
      summarise(total = sum(value, na.rm = TRUE)) %>% #sum total tesats
      pull(total)

    scales::comma(total_tests) # final value with nice formatting

  })

  #-average TPR value box-------------------------------------------------------
  output$tpr_value <- renderText({

    req(input$include_tpr) # requires the TPR check to be TRUE

    # data processing
    df <-
      filtered_data() %>% # pull filtered data
      pivot_wider(names_from = var_name, values_from = value) %>% #widens data frame to have a column per indicator
      mutate(
        tpr = round((malaria_cases / malaria_tests) * 100, 2) # calculates TPR as a percentage
      ) %>%
      summarise(
        tpr = mean(tpr, na.rm=TRUE) # takes average of TPR on % scale
      )

    avg_tpr <- round(df$tpr, 1) # rounds to one decimal place

    avg_tpr # returns value
  })


  #-PLOTS------------------------------------------------------------------------------------------------------

  #-Plot of reported values over time selected by province----------------------
  output$ts_plot <- renderPlotly({

    # only validate if Province level is selected
    if (input$reporting_level == "Province") {
      # condiditional messaging -  Check if province selection is made and if not display the following message
      # Check if data selected and prompt to select data series
      validate(
        need(input$province_select != "", "Please select a province to view data."),
        need(length(input$series_select) > 0, "Please select at least one data elemtent to generate the plot.")
      )
    }

    # title value
    title_val =
      ifelse(input$reporting_level == "Province",
             paste("Malaria Indicators in:", input$province_select),
             "Malaria Indicators at National Level")


    df <-
      filtered_data()  %>%  # get province data
      filter(var_name %in% input$series_select) # Get the filtered data as per input

    req(nrow(df) > 0)              # Ensure there are rows to plot

    # Create a ggplot time series of time on the xaxis cases on the y, colour by data type
    p <-
      ggplot(df, aes(x = period, y = value, col=var_name)) +
      geom_line() +  #add line style
      geom_point() + # add points to the line
      labs(
        title = title_val,
        x = "Month",
        y = "Value",
        col="Indicator"
      ) +
      scale_color_manual(values = c("malaria_cases" = "#571845", "malaria_tests" = "#C42847"))+ # set the colour values
      theme_minimal()

    # Convert ggplot to interactive Plotly object
    ggplotly(p)

  })

  #-Conditional rendering of TPR plot-------------------------------------------
  output$tpr_plot <- renderPlotly({

    # validate if Province level is selected
    if (input$reporting_level == "Province") {
      # condiditional messaging -  Check if province selection is made and if not display the following message
      # Check if data selected and prompt to select data series
      validate(
        need(input$province_select != "", "Please select a province to view data."),
        need(input$include_tpr, "Enable TPR toggle to display plot."),
        need(length(input$series_select) == 2, "Please select both malaria cases and malaria tests to calculate TPR.")
      )
    }

    # Validate for national level
    # Use validate + need to provide informative user messages
    validate(
      need(input$include_tpr, "Enable TPR toggle to display plot."),
      need(length(input$series_select) == 2, "Please select both malaria cases and malaria tests to calculate TPR.")
    )

    # title value
    title_val =
      ifelse(input$reporting_level == "Province",
             paste("Test Positivity Rate (TPR) in:", input$province_select),
             "Test Positivity Rate (TPR) at National Level")

    # calculate TPR - Test Positivity Rate
    df <-
      filtered_data() %>% # get the filtered province data
      pivot_wider(names_from = var_name, values_from = value) %>% # pivot the data wider to have cases and tests in separate columns
      arrange(period) %>% # arrange by period
      mutate(
        tpr = round((malaria_cases / malaria_tests) * 100, 2) # calculate TPR as a percentage - rounded to 2 decimal places
      )

    # Plot the TPR over time
    p <-
      ggplot(df, aes(x = period, y = tpr)) +
      geom_point(color = "#FECC01") +
      labs(
        title =  title_val,
        x = "Month",
        y = "TPR (%)"
      ) +
      theme_minimal() +
      scale_y_continuous(limits = c(0, 100)) # set y-axis limits from 0 to 100%

    ggplotly(p) # convert ggplot to plotly object

  })


  #-Incidence plot----------------------------------------------------------------
  output$inc_plot <- renderPlotly({

  # Add messages to inform user to select a province
  if (input$reporting_level == "Province") {
    validate(
      need(input$province_select != "", "Please select a province to view data.")
      )
  }

  # filter dataset if province level otherwise use the full dataset
  if(input$reporting_level == "Province"){
    df <-
      filtered_data() %>% # filtr province data
      filter(var_name == "malaria_cases_per_1000") # select inc var

  }else{
    df <- app_data %>%
      filter(var_name == "malaria_cases_per_1000") # select inc var
  }


  # title value
  title_val =
    ifelse(input$reporting_level == "Province",
           paste("Malaria Incidence in:", input$province_select),
           "Malaria Incidence at National Level")

  # Plot the incidence over time
  p <-
    ggplot(df, aes(x = period, y = value, col=organisation_unit)) +
    geom_line( ) +
    geom_point( ) +
    labs(
      title = title_val,
      x = "Month",
      y = "Incidence (per 1,000)"
    ) +
    theme_minimal()

  ggplotly(p)
})

# Incidence leaflet map----------------------------------------------------------------------
output$inc_map <- renderLeaflet({

  # Summarise incidence by province - no need to use filtered data as
  # we want all provinces shown on the map
  df <-
    app_data %>%
    filter(var_name == "malaria_cases_per_1000") %>% # filter to incidence data
    group_by(organisation_unit) %>%  # group by organisation unit
    summarise(inc = mean(value, na.rm = TRUE)) # calculate mean incidence per 1,000

  # Join data to spatial file
  df_shape <- left_join(adm1_shp, df, by = c("org_unit" = "organisation_unit"))

  # Create color palette
  pal <- colorNumeric(
    palette = "YlOrRd",    # yellow orange red scale
    domain = df_shape$inc, # use the incidence values for color mapping
    na.color = "#f0f0f0"   # set the NA value colour
  )

  # Determine which province (if any) is selected to highlight
  selected_province <- if (input$reporting_level == "Province" && input$province_select != "") {
    input$province_select
  } else {
    "national"
  }

  # Create the leaflet map
  leaflet(df_shape) %>% # use the spatial data
    addProviderTiles(providers$CartoDB.Positron) %>% # adds base map layer
    addPolygons(
      # add polygons for each province
      fillColor = ~pal(inc), # fill color based on incidence
      weight = ~ifelse(org_unit == selected_province, 3, 1), # highlight selected province with thicker border
      color = ~ifelse(org_unit == selected_province, "#7C204F", "black"), # set border color
      opacity = 1, # set opacity of the border
      fillOpacity = 0.8, # set fill opacity
      label = ~paste0(org_unit, ": ", round(inc, 1), " per 1,000"), # add labels with province name and incidence
      highlightOptions = highlightOptions(
        # highlight options for interactivity
        weight = 3, # thicker border on hover
        color = "#333", # darker border on hover
        fillOpacity = 0.9, # fill opacity on hover
        bringToFront = TRUE # bring polygon to front on hover
      )
    ) |>
    # Add the color legend
    addLegend(
      pal = pal,
      values = df_shape$inc,
      title = "Avg Incidence (per 1,000)",
      position = "bottomright"
    )
})

#-Summary table of annual values-------------------------------------------------------------
output$summary_data <- renderDT({

  # Filter and summarise the app_data to create a summary table using all provinces
  df <-
    app_data %>%
    # Filter to relevant variables
    filter(var_name %in% c("malaria_cases", "malaria_tests", "malaria_cases_per_1000")) %>%
    # Pivot the data to wide format
    pivot_wider(
      names_from = var_name,
      values_from = value,
    ) %>%
    # Group by organisation unit (province)
    group_by(organisation_unit) %>%
    # Calculate TPR and summarise the data
    mutate(tpr = round((malaria_cases / malaria_tests) * 100, 1)) %>%
    # Summarise the data to get total cases, total tests, average TPR, and average incidence
    # And two new variables - reporting months for cases and tests
    summarise(
      total_cases = sum(malaria_cases, na.rm = TRUE),
      total_tests = sum(malaria_tests, na.rm=TRUE),
      avg_tpr = round(mean(tpr, na.rm=TRUE), 1),
      avg_inc = round(mean(malaria_cases_per_1000, na.rm=TRUE),1),
      reporting_months_cases = sum(!is.na(malaria_cases)),
      reporting_months_tests = sum(!is.na(malaria_tests))
    ) %>%
    # Rename columns for nice table headings
    rename(
      Province = organisation_unit,
      `Total Cases` = total_cases,
      `Total Tests` = total_tests,
      `Average TPR (%)` = avg_tpr,
      `Avg Incidence` = avg_inc,
      `Case Reporting Months` = reporting_months_cases,
      `Test Reporting Months` = reporting_months_tests
    )

  # Build DT object
  dt <- datatable(
    df, # Create a datatable from the summarised data
    rownames = FALSE,  # disable row names
    options = list(
      pageLength = 10, # number of rows per page
      dom = "tip",     # table controls
      autoWidth = TRUE # auto width for columns
    )
  )

  # Highlight selected province
  if (input$reporting_level == "Province" && input$province_select != "") {
    # Apply row styling to highlight the selected province
    selected <- input$province_select
    # Use formatStyle to apply bold font weight to the selected province row
    dt <- dt %>%
      formatStyle(
        "Province",
        target = "row",
        fontWeight = styleEqual(selected, "bold")
      )
  }

  # Return the datatable object
  dt
})

#-Code for handling data downloads--------------------------------------------------------------

# Create a reactive data frame for the summary table to pull data from same logic as in the
# data rendering code
summary_table_data <- reactive({
  app_data |>
    filter(var_name %in% c("malaria_cases", "malaria_tests", "malaria_cases_per_1000")) |>
    pivot_wider(names_from = var_name, values_from = value) |>
    group_by(organisation_unit) |>
    mutate(tpr = round((malaria_cases / malaria_tests) * 100, 2)) |>
    summarise(
      total_cases = sum(malaria_cases, na.rm = TRUE),
      total_tests = sum(malaria_tests, na.rm=TRUE),
      avg_tpr = round(mean(tpr, na.rm=TRUE), 1),
      avg_inc = round(mean(malaria_cases_per_1000, na.rm=TRUE),1),
      reporting_months_cases = sum(!is.na(malaria_cases)),
      reporting_months_tests = sum(!is.na(malaria_tests))
    ) |>
    rename(
      Province = organisation_unit,
      `Total Cases` = total_cases,
      `Total Tests` = total_tests,
      `Average TPR (%)` = avg_tpr,
      `Avg Incidence` = avg_inc,
      `Case Reporting Months` = reporting_months_cases,
      `Test Reporting Months` = reporting_months_tests
    )
})


# Enable file download
output$download_summary <- downloadHandler(
  # Define the filename for the downloaded file
  filename = function() { paste0("summary_data_", Sys.Date(), ".csv") }, # This will create a file name with the current date

  # Define the content of the file
  content = function(file) {
    write.csv(summary_table_data(), file, row.names = FALSE) # Write the summary table data to a CSV file
  }
)

}


#-Run the application-----------------------------------------------------------
shinyApp(ui = ui, server = server)

Next Steps and Extensions

While we have covered a broad range of features, this only scratches the surface of what you can build with Shiny. Below are some suggested areas to explore next as you continue developing your Shiny skills.

Expanding Functionality

Add additional filters such as date ranges or multiple administrative levels
Include new calculated indicators directly within the dashboard
Build more complex plots, for example:
- Adding trendlines or smoothing
- Faceting across multiple provinces
- Allowing users to interactively select multiple indicators for comparison
Allow users to upload their own datasets into the dashboard directly
Build drill-down functionality to explore district- or facility-level data

Organizing and Scaling Your Code

As dashboards become more complex, managing code in a single app file can become difficult. You may want to:

Split your code into multiple files, separating UI, server, and helper functions
Use modular design with callModule() or moduleServer() to create reusable components
Build centralized helper functions (e.g., helpers.R) for repeated tasks such as data filtering or value box creation

This makes your code easier to maintain and scale over time.

Styling and User Experience

In addition to the core functionality, improving the design and appearance of your dashboard can make it easier to use:

Customize your bslib themes to align with institutional branding
Provide users with contextual help such as pop-up modals or collapsible panels to explain indicators or methods
Use dynamic tooltips, colour schemes, or alert messages to highlight important information

Useful Resources for Further Learning

Shiny Official Documentation
Mastering Shiny by Hadley Wickham (free online book)
bslib Documentation for theming
Shiny GalleryExamples for code samples

Setup

Install Packages

Objectives

Set up App Skeleton

Anatomy of a Shiny App

Read In Our Data

Part 1: Shiny Building Blocks

Setting up an Empty Layout

Layout Elements

Cards()

Exercise 1

value_boxes()

Exercise 2

Adjusting Layout Positions

layout_columns()

Exercise 3

layout_column_wrap()

Widget Control Elements

Choosing the Right Input controls: A Quick Exploration

Exercise 4

Putting it all together

Pause & Reflect: Where We Are

Quick self-check questions

Part 2 Reactivty and Rendering output

Shiny Output Types

Building Reactive Outputs: ui and server crosstalk

ui() side arguements

server() side arguements

Reactivity and Data

Exercise 5

Adding a Reactive Plot

Exercise 6 -7:

End of Part 2 — What You’ve Built So Far

Part 3: Evolving Features - Making Our App Better!

Adding messages and prompts 📧

Adding a Short Description of the Application 🖊️

Exercise 8

Theming with bs_theme 🎨

Exercise 9

Exercise 10

Adding a Logo to Your App

Exercise 11

Wrapping up Part 3 — Building for the User

Part 4: Addiditional Outputs

Computed Variables and Conditional Widgets

Exrecise 12

Input Selection Within Cards

User Experience

Stretch Exercise

Including Leaflet Maps

Exercise 13

Adding a Table Output

Exercise 14 - Tricky

Wrapping Up

Next Steps and Extensions

Expanding Functionality

Organizing and Scaling Your Code

Deployment and Sharing

Styling and User Experience

Useful Resources for Further Learning

`Cards()`

`value_boxes()`

`layout_columns()`

`layout_column_wrap()`

Building Reactive Outputs: `ui` and `server` crosstalk

`ui()` side arguements

`server()` side arguements

Theming with `bs_theme` 🎨
